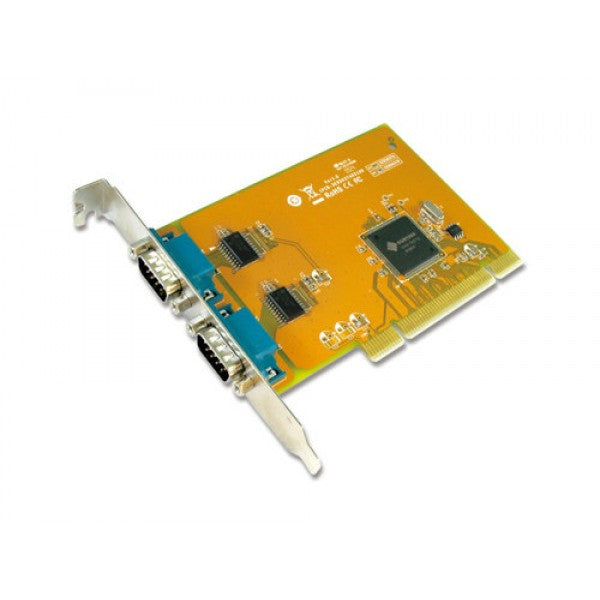

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L) SER5037A

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS

Description
Product Description2-port RS-232 Universal PCI Serial Board
Serial Communication
InterfaceRS-232
ControllerSUNIX SUN1989 (16C950 UART Compatible)
BusUniversal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port2-port
IRQ & IOAssigned by System
FIFO128 byte (Hardware)
SignalTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate50 bps to 115.2 Kbps
Data bit5,6,7,8
Stop bit1,1.5,2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, Xon/Xoff, RTS/CTS
Protection2KV ESD protection for each signal Human Body Model (HBM)
PCB connectorDB9 Male
Driver Support
Windows ClientXP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server2003 / 2008 / 2012 / 2016 (X64)
Windows EmbeddedWindows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
LinuxLinux 2.x / 3.x / 4.x
DOSDOS
FreeBSDFreeBSD 5.35.5 / 6.06.4
QNXQNX 6.3.2/6.4.0
* IBM OS/2WARP 3/WARP 4
* SCO UnixWareUnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun MicrosystemsSolaris 10
Note : * ' Supported by special inquiry.
Regulatory Approvals
HardwareEN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS
SoftwareMicrosoft WHQL Windows
Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operation Temperature0 to 60C (32 to 140F)
Operation Humidity5 to 95% RH
Storage Temperature-20 to 85C (-4 to 185F)
Dimension
PCB Dimension120 x 82 mm
BracketStandard 121 mm
Bracket Space1
