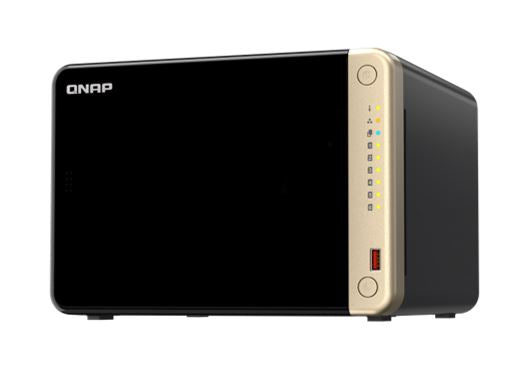

QNAP TS-664-8G 6 Bay Intel Celeron N5095 4-core 8GB DDR4 2xSlot 2xM.2 2x2.5GbE WOL 2xUSB3.2 1xHDMI2.0 Hot-swappable 3yr WTY TS-664-8G

QNAP TS-664-8G 6 Bay Intel Celeron N5095 4-core 8GB DDR4 2xSlot 2xM.2 2x2.5GbE WOL 2xUSB3.2 1xHDMI2.0 Hot-swappable 3yr WTY TS-664-8G

SKU:L-BAQN-TS-664-8G

Regular price $1,308.00
Regular price Sale price $1,308.00
Sale Sold out
GST included. Shipping calculated at checkout.
  • 99% of orders are dispatched same or next business day
  • Australian Stock and Warranty
  • Perth pickup may be available (2-4 days)
QNAP TS-664-8G 6 Bay Intel Celeron N5095 4-core 8GB DDR4 2xSlot 2xM.2 2x2.5GbE WOL 2xUSB3.2 1xHDMI2.0 Hot-swappable 3yr WTY

Powered by an Intel Celeron N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 8GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.


CPUIntel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture64-bit x86
Graphic ProcessorsIntel UHD Graphics
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory8 GB SO-DIMM DDR4 (1 x 8 GB)
Maximum Memory16 GB (2 x 8GB)
Memory Slot2 x SO-DIMM DDR4
Flash Memory4GB (Dual boot OS protection)
Drive Bay6 x 3.5-inch SATA 6Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
PCIe Slot1
Slot 1: PCIe Gen 3 x2
USB 2.0 port2
USB 3.2 Gen 2 (10Gbps) Port2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output1, HDMI 2.0
Operating temperature0 40C (32F 104F)
Power Supply Unit120W adapter, 100-240V
Power Consumption: HDD Sleep Mode18.634 W
Fan2 x 90mm, 12VDC
Warranty 3 yr
