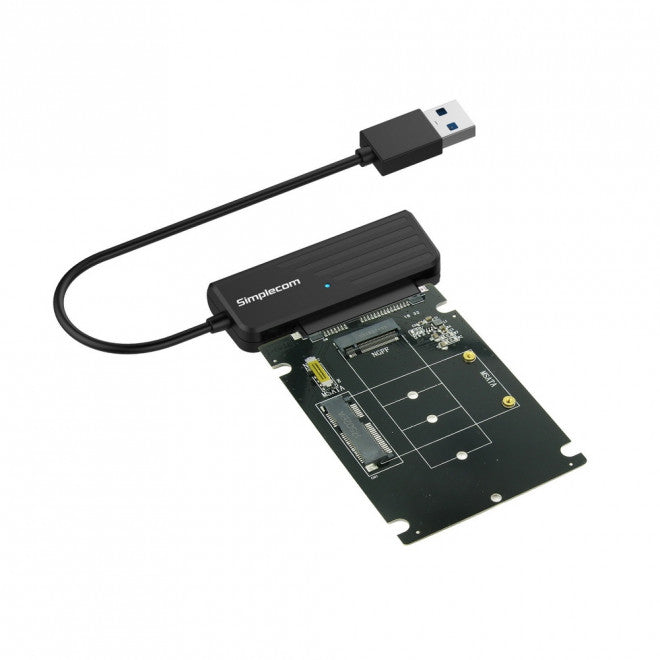

Simplecom SA225 USB 3.0 to mSATA + M.2 (NGFF B Key) 2 In 1 Combo Adapter SA225

SA225 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to USB 3.0 interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard USB port on PC, also you can install this adapter to SATA port after detached the USB cable. Its an ideal solution for data backup and migration.

Features

mSATA + M.2 SSD 2 in 1 Combo Adapter
Convert a mSATA or M.2 SSD to USB 3.0
On board mSATA and M.2 Switch
Detachable USB 3.0 cable
USB 3.0 (USB3.1 Gen 1) interface up to 5Gbps data transfer rate
Plug and play, no drivers required
Compatible with Windows 7 and above, Mac OS 10.6 and above
Specifications

Circuit board Size: 97x65x5mm
Support following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Support following form factor mSATA SSD:
Full size mSATA : 50.95mm(L) x 30mm(W)
Package Contents

1x mSATA + M.2 SSD 2 in 1 Combo Adapter
1x USB 3.0 Cable
1x Screw Driver
Screws with Washer


Important Note:

*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
