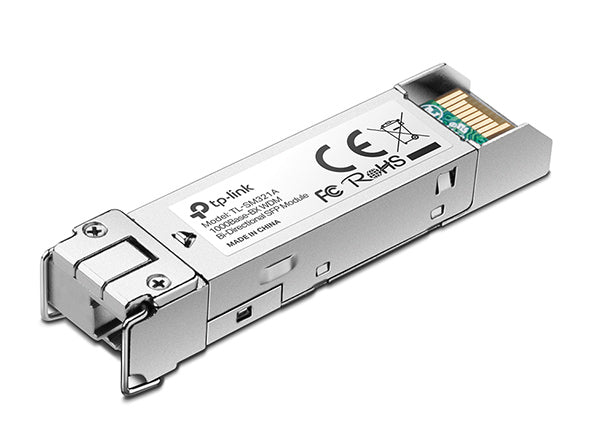

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550nm, RX: 1310nm, Up to 2KM Transmission Distance, LC Simplex TL-SM321A-2

Name: TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550nm, RX: 1310nm, Up to 2KM Transmission Distance, LC Simplex TL-SM321A-2
Brand: TP-LINK
SKU: L-NWTL-SM321A-2
Price: 29.0 AUD
Availability: InStock

SKU:L-NWTL-SM321A-2

$29.00

Sale Sold out

GST included. Shipping calculated at checkout.

99% of orders are dispatched same or next business day
Australian Stock and Warranty
Perth pickup may be available (2-4 days)

Quantity

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)
Adopts the latest standard 1000Base-BX
Up to 2 km transmission distance in 9/125 m SMF (Single-Mode Fiber)
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Supports Digital Diagnostic Monitoring (DDM)
Supports Hot Swappable

HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
MEDIA CONVERTER & MODULE
Standards and ProtocolsIEEE 802.3z, TCP/IP
Wave LengthTX: 1550 nm
RX: 1310 nm
Power Supply3.3 V
Safety & EmissionFCC, CE
CabelSingle-Mode Fiber
Fiber Type9/125 m Single-Mode
Max. Cable Length2 KM
Data Rate1.25 Gbps
Port TypeLC Simplex
EnvironmentOperating Temperature: 070 C (32158 F)
Storage Temperature: -4085 C ( -40185 F)
Operating Humidity: 1090% RH, Non-Condensing
Storage Humidity: 590% RH, Non-Condensing
