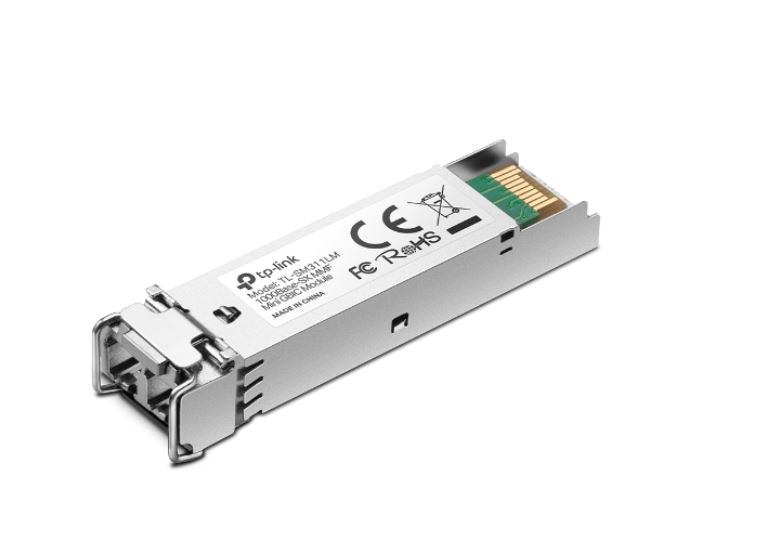

TP-Link SM311LM SFP Module Multi-Mode Mini GBIC, IEEE 802.3z, LC-Type, 850nm, 0.55km Multi-mode SM311LM
TP-Link SM311LM SFP Module Multi-Mode Mini GBIC, IEEE 802.3z, LC-Type, 850nm, 0.55km Multi-mode SM311LM
SKU:L-NWTL-SM311LM
Regular price
$41.00
Regular price
Sale price
$41.00
Unit price
per
GST included.
Shipping calculated at checkout.
- 99% of orders are dispatched same or next business day
- Australian Stock and Warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
TP-Link SM311LM Multi-Mode Mini GBIC SFP Module for T3700G-28TQ TL-SG5412F TL-SG5428 TL-SL5428E TL-SG3210 TL-SG3216 TL-SG3424P TL-SL3428 TL-SL3452
Multi-mode MiniGBIC module
Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Features
Supports full-duplex
Plug-and-Play
Supports Pull-or-Plug with power on switches
Power: internal power from switches
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
Supports full-duplex
Plug-and-Play
Supports Pull-or-Plug with power on switches
Power: internal power from switches
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
MEDIA CONVERTER & MODULE
Standards and ProtocolsIEEE 802.3z, CSMA/CD, TCP/IP
Wave Length850nm
Power Supply3.3V
Safety & EmissionFCC, CE
CabelMulti-mode Fiber
Fiber Type50/125m or 62.5/125m Multi-mode
Max. Cable Length550m
Data Rate1.25Gbps
Port TypeLC/UPC
EnvironmentOperating Temperature: 070 (32158)
Storage Temperature: -4080 (-40176)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
View full details
Multi-mode MiniGBIC module
Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Features
Supports full-duplex
Plug-and-Play
Supports Pull-or-Plug with power on switches
Power: internal power from switches
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
Supports full-duplex
Plug-and-Play
Supports Pull-or-Plug with power on switches
Power: internal power from switches
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L
MEDIA CONVERTER & MODULE
Standards and ProtocolsIEEE 802.3z, CSMA/CD, TCP/IP
Wave Length850nm
Power Supply3.3V
Safety & EmissionFCC, CE
CabelMulti-mode Fiber
Fiber Type50/125m or 62.5/125m Multi-mode
Max. Cable Length550m
Data Rate1.25Gbps
Port TypeLC/UPC
EnvironmentOperating Temperature: 070 (32158)
Storage Temperature: -4080 (-40176)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
