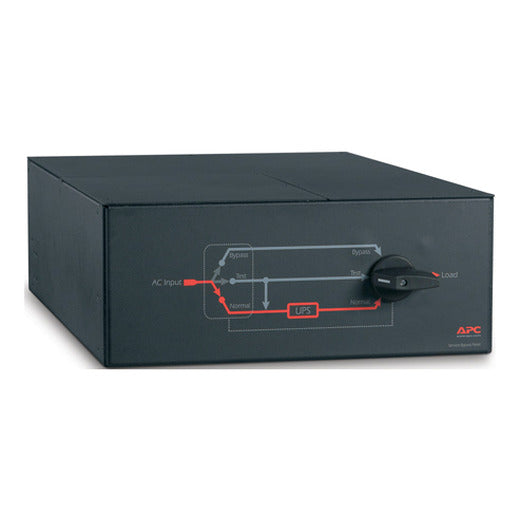

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output SBP16KP
APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output SBP16KP
SKU:L-UPA-SBP16KP
Regular price
$3,225.00
Regular price
Sale price
$3,225.00
Unit price
per
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output
Main Input Voltage 200 V 208 V 230 V 480 V 3 phases
Main Output Voltage 120 V 200 V 208 V 230 V
Other Output Voltage 220 V 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment Installation guide
Rack mounting brackets User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200240 V
Max line current 100 A
Input current limits 100 A
Load capacity 20000 VA
Power factor 01
Max current draw 100 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA GOST
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -2050 C
Relative humidity 095 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -4065 C
Storage Relative Humidity 095 %
Storage altitude 0.0015240.00 m
Mounting mode- Rack mounted
View full details
Main Input Voltage 200 V 208 V 230 V 480 V 3 phases
Main Output Voltage 120 V 200 V 208 V 230 V
Other Output Voltage 220 V 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment Installation guide
Rack mounting brackets User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200240 V
Max line current 100 A
Input current limits 100 A
Load capacity 20000 VA
Power factor 01
Max current draw 100 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA GOST
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -2050 C
Relative humidity 095 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -4065 C
Storage Relative Humidity 095 %
Storage altitude 0.0015240.00 m
Mounting mode- Rack mounted
Description
APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output
Main Input Voltage 200 V 208 V 230 V 480 V 3 phases
Main Output Voltage 120 V 200 V 208 V 230 V
Other Output Voltage 220 V 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment Installation guide
Rack mounting brackets User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200240 V
Max line current 100 A
Input current limits 100 A
Load capacity 20000 VA
Power factor 01
Max current draw 100 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA GOST
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -2050 C
Relative humidity 095 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -4065 C
Storage Relative Humidity 095 %
Storage altitude 0.0015240.00 m
Mounting mode- Rack mounted
