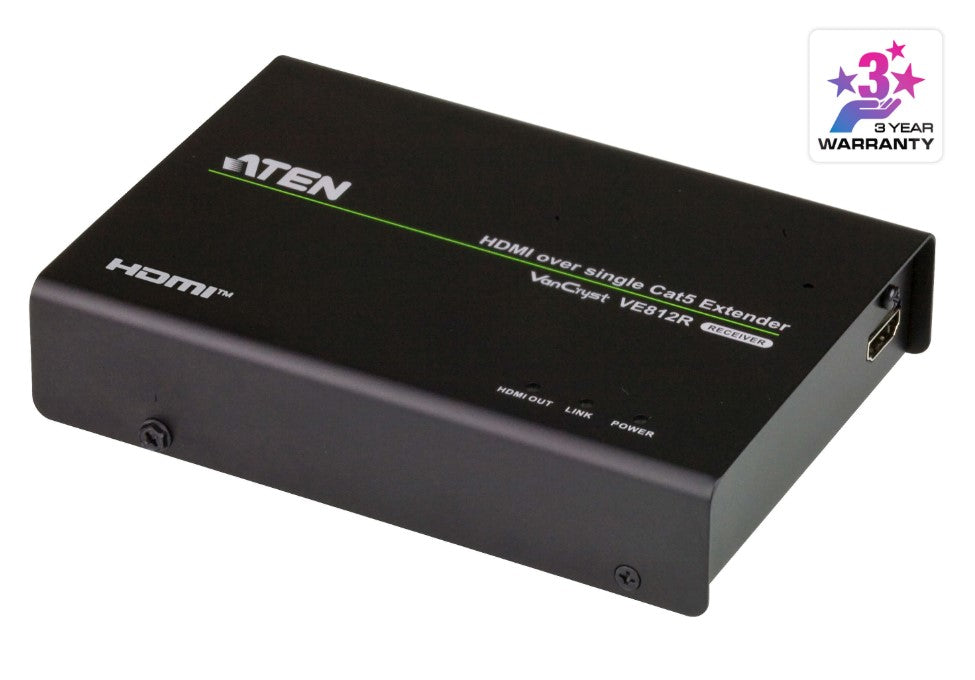

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A) VE812R-AT-U

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A)(LS)

Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100
Max. Distance3 m (2L-7D03H)
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel ClockUp to 340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output1 x HDMI Type A Female (Black)
Connectors
Power1 x DC Jack
Power ConsumptionDC5.3V:5.06W:24BTU
Environmental
Operating Temperature0 - 50C
Storage Temperature-20 - 60C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.41 kg ( 0.9 lb )
Dimensions (L x W x H)14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
