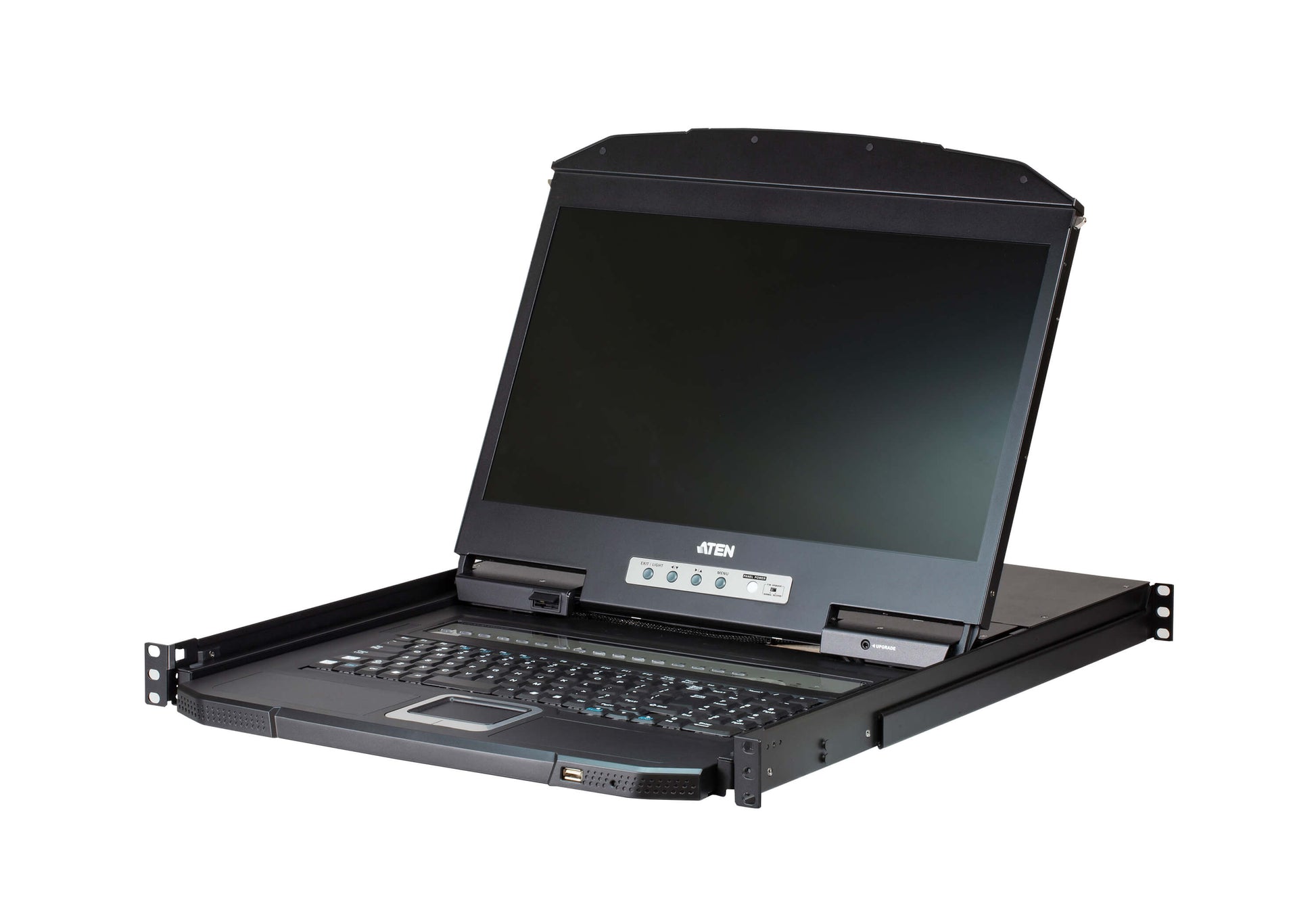

Aten Rackmount KVM Switch 8 Port VGA w/ 18.5' LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design CL3108NX-ATA-AU

Aten 18.5' Short Depth 8 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable

Exclusive LED illumination light
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels CL3108 controls up to 128 computers or CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)

FunctionCL3108NX
Computer Connections
Direct8
Maximum128 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
KVM Ports8 x SPHD Female (Yellow)
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)
Power1 x IEC 60320/C14
External Mouse Port1 x USB Type A Female (Front)
Switches
Port Selection8 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
Video
Input Video Resolutionup to 1920 1200 @ 60 Hz;
1366 768 @ 60 Hz, DDC2B
Scan Interval1-255 seconds
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100240 V AC, 50-60 Hz, 1 A
Power ConsumptionAC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Physical Properties
HousingMetal + Plastic
Rail TypeSingle Rail
Weight10.50 kg ( 23.13 lb )
Dimensions (L x W x H)48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H)44.92 x 58.4 x 4.28 cm
