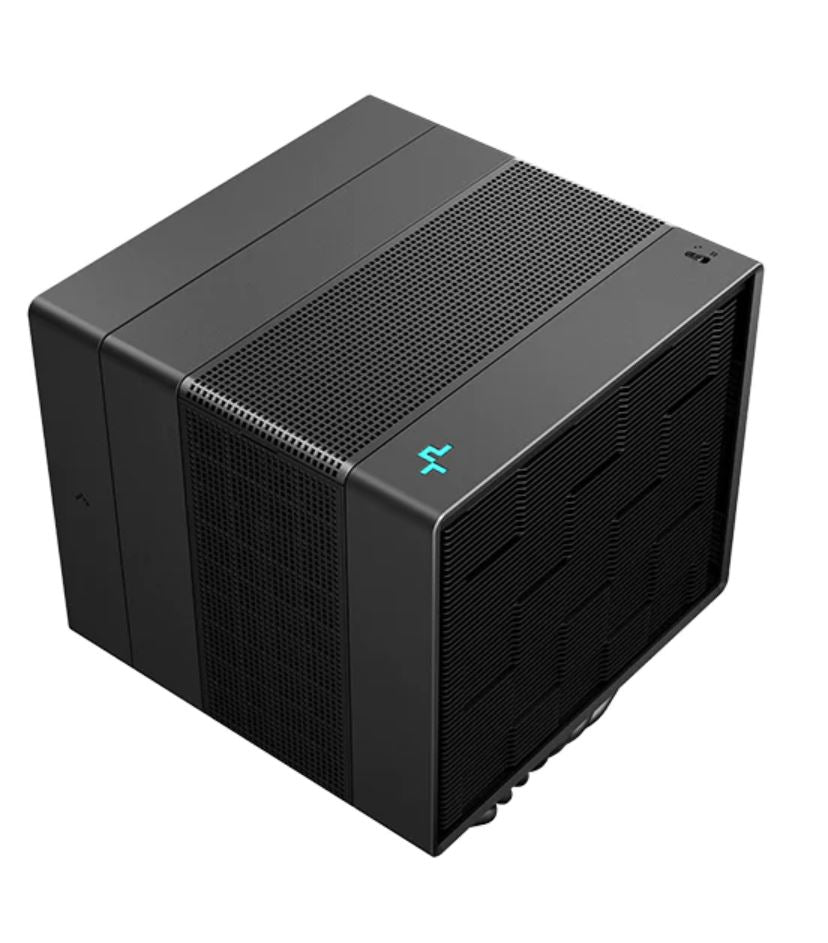

DeepCool ASSASSIN IV Premium CPU Air Cooler R-ASN4-BKNNMT-G

Powerful cooling performance, air-cooled ceiling; 3+ performance improvement over the third generation
100% avoid RAM, with incomparable super compatibility;
Quick installation, magnetic top cover + unique fan snap-on structure design;
Reserve the third fan position and distribute the installation accessories;
Unique matrix fin brand family design;
Luminous LOGO, light and dark effects can be switched in the dual mode state;


Application For Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions144147164 mm(LWH)
Heatsink Dimensions140110160 mm(LWH)
Net Weight1575 g
Heatpipe6 mm7 pcs
Fan Dimensions14014025 mm(LWH) / 12012025 mm(LWH)
Fan Speed (Performance Mode)5001700 RPM10%
Fan Airflow (Performance Mode)79.1 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)2.44 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)29.3 dB(A)
Fan Speed (Quiet Mode)5001350 RPM10%
Fan Airflow (Quiet Mode)63.76 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)1.58 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)22.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Motor Type6-Pole Fan Motor
Fan Rated Voltage12 VDC
Fan Rated Current0.1 A / 0.07 A
Fan Power Consumption1.2 W / 0.84 W
Rated Voltage12 VDC
Power Consumption(Performance Mode)2.88 W
Power Consumption(Quiet Mode)1.56 W
