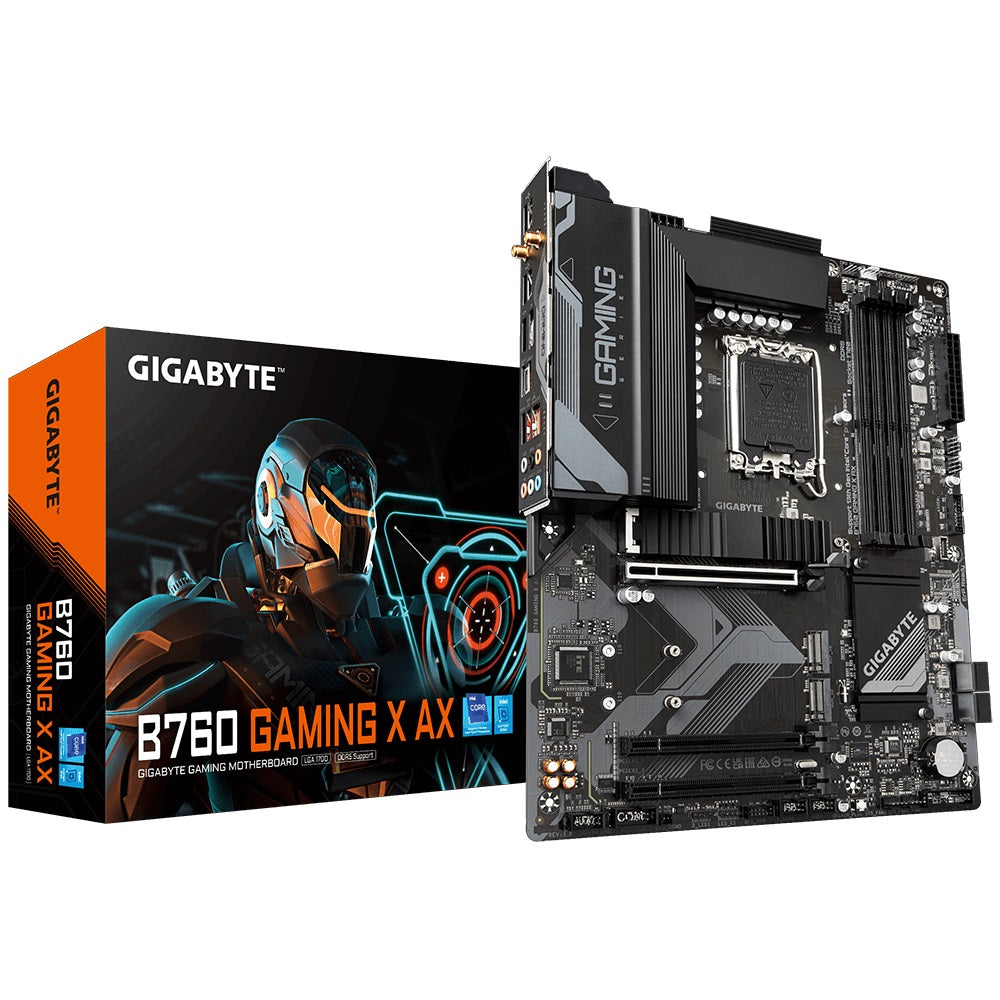

Gigabyte B760 Gaming X AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 3x M.2, 4x SATA, 2x USB 3.2, 1x USB-C, 5x USB 2.0 B760 GAMING X AX
Gigabyte B760 Gaming X AX Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 3x M.2, 4x SATA, 2x USB 3.2, 1x USB-C, 5x USB 2.0 B760 GAMING X AX
SKU:L-MBG-B760GXAX
Regular price
$325.00
Regular price
Sale price
$325.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 4 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 0 units available
Sydney, New South Wales 2000
Melbourne - 4 units available
Melbourne, Victoria 3000
Brisbane - 6 units available
Brisbane City, Queensland 4000
Adelaide - 4 units available
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Gigabyte B760 Gaming X AX Intel LGA 1700 ATX Motherboard, 4x DDR5 128GB, 3x PCI-E x16, 3x M.2, 4x SATA, 2x USB 3.2, 1x USB-C, 5x USB 2.0
Features:
Intel Socket LGA 1700Support 13th and 12th Gen Series Processors
Unparalleled PerformanceHybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR54*DIMMs XMP Memory Module Support
Next Generation Storage3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance
EZ-LatchPCIe 4.0x16 Slot with Quick Release Design
Fast Networks2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended ConnectivityFront USB-C 10
Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer 'CPU Support List' for more information.)
Chipset
Intel B760 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots
3 x PCI Express x16 slot
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
View full details
Features:
Intel Socket LGA 1700Support 13th and 12th Gen Series Processors
Unparalleled PerformanceHybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR54*DIMMs XMP Memory Module Support
Next Generation Storage3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance
EZ-LatchPCIe 4.0x16 Slot with Quick Release Design
Fast Networks2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended ConnectivityFront USB-C 10
Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer 'CPU Support List' for more information.)
Chipset
Intel B760 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots
3 x PCI Express x16 slot
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
