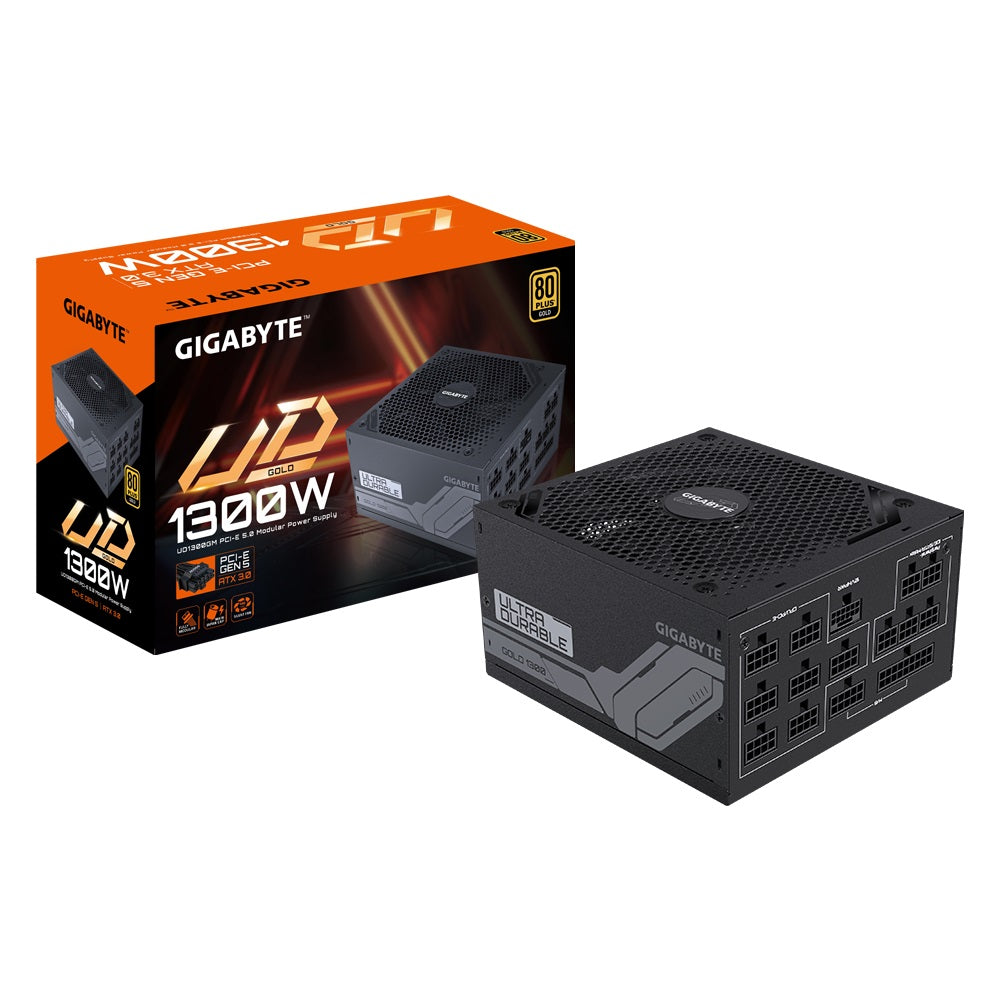

Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs GP-UD1300GM PG5
Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs GP-UD1300GM PG5
SKU:L-PSG-UD1300GMPG5
Regular price
$454.00
Regular price
Sale price
$454.00
Unit price
per
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
Input Current15-6.5A
SPECIFICATIONS:
ModelGP-UD1300GM PG5
TypeIntel Form Factor ATX 12V v3.0
PFCActive PFC (>0.9 typical)
Input Voltage100-240 Vac (full range)
Input Current15-6.5A
Input Frequency60-50 Hz
Output Capacity1300W
Dimension150 x 160 x 86 mm
Fan Type140mm double ball bearing fan
80 PLUSGold
Efficiency90% at typical load
MTBF>100,000 hours
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal100-150ms
Hold Up Time>16ms
Cable TypeFlat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
View full details
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
Input Current15-6.5A
SPECIFICATIONS:
ModelGP-UD1300GM PG5
TypeIntel Form Factor ATX 12V v3.0
PFCActive PFC (>0.9 typical)
Input Voltage100-240 Vac (full range)
Input Current15-6.5A
Input Frequency60-50 Hz
Output Capacity1300W
Dimension150 x 160 x 86 mm
Fan Type140mm double ball bearing fan
80 PLUSGold
Efficiency90% at typical load
MTBF>100,000 hours
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal100-150ms
Hold Up Time>16ms
Cable TypeFlat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
