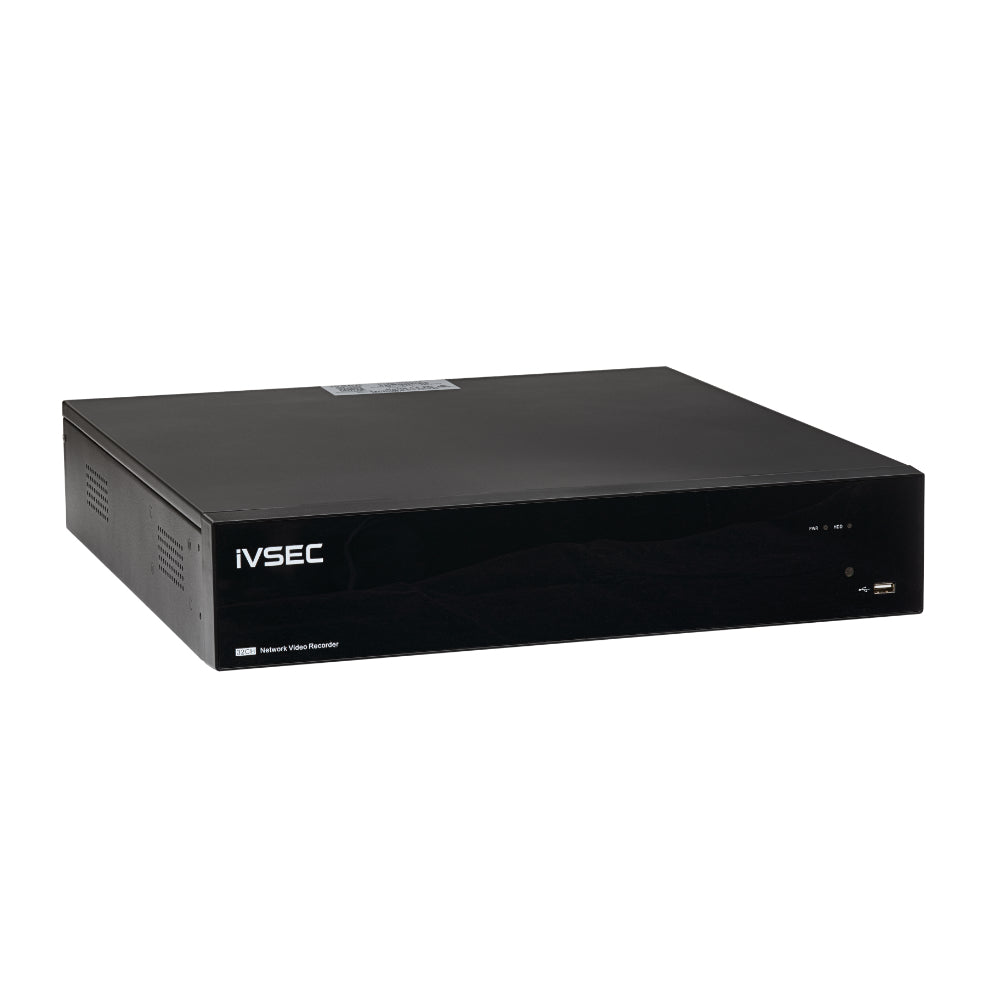

NR6324EXA NVR

Experience cutting-edge video technology with our 32 channel NVR. Enjoy a 256Mbps bandwidth for all your camera needs 4 x HDD drive bays allow for plenty of recording retention holding up to 40TB of footage. RAID adds data redundancy for your security needs. Stay in charge and react promptly with remote mobile access. This NVR has many features that are best demonstrated. Please contact us.

Maximum Channels	32
Maximum Video Resolution MP	12MP
Examples of Channels at a resolution with FPS	320 Mbps
Video Compression	H.264 H.264 H.265 H.265
Video Output Resolution	8MP 5MP 3MP 2MP1080P 1.3MP960P 1.0MP720P
Image Display	1 4 6 8 9 10 12 13 14 16 17 19 20 22 25 32
Intelligent Video Dependant On Camera	Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare Sound Detection Video Tampering License Plate Recongnition
Search Method	Continuous Scheduling Event Triggered By IVS filtering. Snapshot Searching Tagging footage Time Lapse Slice Multiple Snapshot Thumbnail Search Per Hour General Indicated Timeline Seach.
Total Storage Potential TB	40
HDD Bays Size	Bays x 4 up to 10TB per HDD
Software	Device Search Config Tool Surveillance Client CMS VMS Mobile app
Protocols	TCP IP UDP HTTP HTTPS DHCP FTP RTP RTSP DNS DDNS NTP PPPOE UPNP SMTP SMTP P2P QR code
Language	English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish
Audio Streaming	Audio out
Non Power Over Ethernet Ports	2
Power Supply	DC 12V 5A
Power Consumption	12W Without HDD
Connectors	HDD 3.5″ SATA HDD Slot x 4 USB2 Female x 2 Gigabit Ethernet RJ-45 Port x 2 HDMI and VGA e-Sata x1 Alarm ports 8 in and 1 out RS485 Audio out Power input x 2 On off switch
Operating Environment	-10°C 50°C 14°F 122°F Humidity Less than 90RH
In The Box	Printed quick installation guide Mouse HDD screws Power supply.
Product Dimensions H x W x L mm	66 x 326 x 378
Weight kg Net / Gross	3.50 / 3.40
Warranty	2 Years Parts
