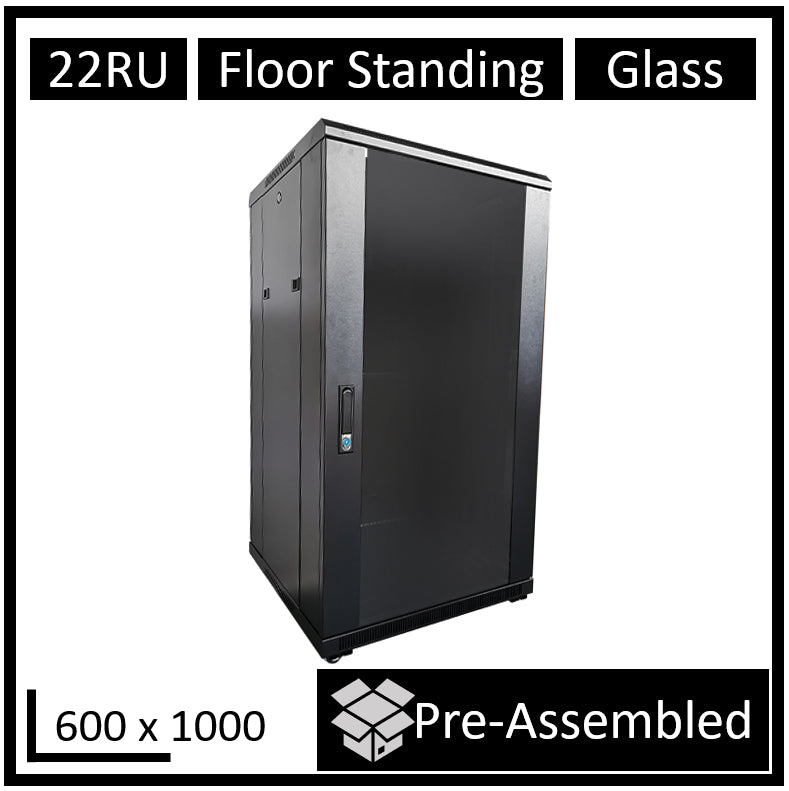

The LDR single section cabinets of the mounting height 22U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

FEATURES

4 Way Fan, 8-Port PDU & Two Shelves Included
Side doors mounted on latches with a lock assembly option
A frame with a load capacity of 800kg
Protection class IP20
Front door - glass

SPECIFICATIONS

Nominal height22U
Total outer height1070mm
Outer width600mm
Outer depth1000mm
Mounting depth900mm
ColourBlack
Maximum load capacity800kg
Protection classIP20
Front doorsGlass with a lock
Back doorsSolid with a lock
Side panelsFull steel dismounted on latches with a lock assembly option
Packaging Dimensions3x Cartons, 85mm x 1030mm x 725mm, 100mm x 1030mm x 635mm & 250mm x 1080mm x 615mm
