LDR Outdoor Smart Solar Box, IP55, *2.4 inch Screen*, Waterproof, Solar Power Input( <100VD), 2 PoE Port Up to 90W, 6 PoE Port Up to 30W, L2 Manage, White RCLDR-DB-QU3082SPG

LDR Smart Solar Box, IP55, *NoTouch Screen*

SKU: RCLDR-DB-QU3082SPG

Description:

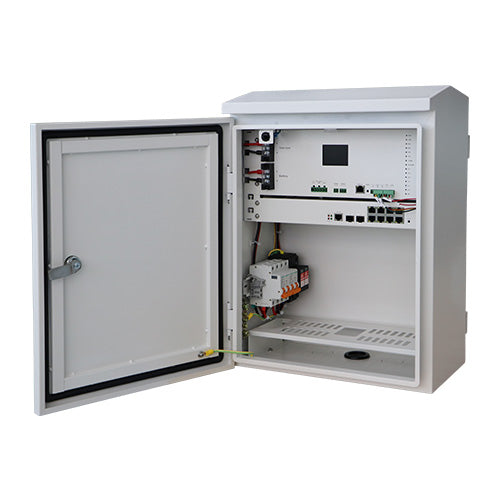

RCLDR-DB-QU3082SPG is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside.
It can be applied for surveillance monitoring, forest monitoring, etc

Data Sheet: Click Here
User Manual: Click Here

Cabinet Display : Click Here
Software Installation: Click Here
*Please contact us for more Software platfrom details after purchase. *

Key Features
BYO: * Need to buy your own battery* - DC 12V lead-acid or Lithium Battery - *Customer Provide*
BYO: * Need to buy your own solar panel* - Solar power input, input <100VDC;
Load Capacity : 70kg
Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged
Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;

With No Touch Screen, 2.4 inch, resolution ratio 480*800
With MPPT controller, connected the solar battery and charge the storage battery ;
The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use.
With software platform, can check and control remotely.
Dimension(HWD): 500mm380mm220mm
Net weight: 15kg
