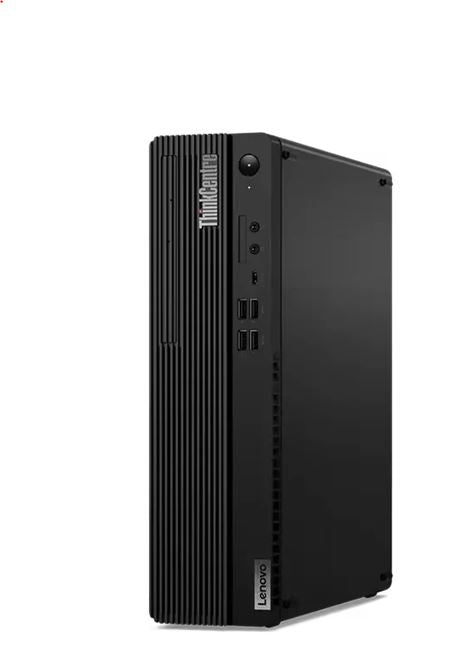

LENOVO ThinkCentre M90S G4 SFF Intel i5-13500 16GB DDR5 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU vPro Keyboard Mouse ~M70S N50s 12HRS10J00

LENOVO ThinkCentre M90S G4 SFF Intel i5-13500 16GB DDR4 512GB SSD Windows 11 Pro 1YR OS Intel UHD GPU vPro Keyboard Mouse

Input DevicesPhysical Characteristics0
Keyboard LocalizationEnglish (US)Weight (Approximate)5.30 kg
WarrantyForm FactorSmall Form Factor
Additional Warranty Information1 Year On-siteHeight339.5 mm
ChipsetWidth92.5 mm
Chipset ManufacturerIntelDepth297.7 mm
Chipset ModelQ670Product ColorBlack
MemoryColor FamilyBlack
Maximum Memory Supported128 GBMiscellaneous
Standard Memory16 GBPackage ContentsThinkCentre M90s Gen 4
Memory TechnologyDDR5 SDRAMKeyboard
Network & CommunicationMouse
Ethernet TechnologyGigabit Ethernet
LAN ManufacturerIntelFeaturesSecurity Slot
LAN ModelI219-LMToolless Cover
Display & GraphicsEnvironmentally FriendlyYes
Graphics Controller ManufacturerIntelEnvironmental CertificationTCO Certified 9.0
Graphics Controller ModelUHD Graphics 770TCO CertifiedYes
Graphics Memory TechnologyDDR5 SDRAMEnergy Efficiency ComplianceEnergy-related Products Directive Lot 3 (ErP Lot 3)
Graphics Memory AccessibilitySharedEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)
Operating SystemGeneral Information
Operating SystemWindows 11 ProProduct TypeDesktop Computer
Operating System Architecture64-bitManufacturer Part Number12HRS10J00
Operating System PlatformWindowsManufacturer Website Addresshttps://www3.lenovo.com/au/en
Operating System LanguageEnglishManufacturerLenovo Group Limited
Power DescriptionProduct Model12HRS10J00
Input Voltage120 V ACProduct NameThinkCentre M90s Gen 4
230 V ACProduct LineThinkCentre
Frequency50 HzProduct SeriesM90s Gen 4
60 HzBrand NameLenovo
Maximum Power Supply Wattage260 WInterfaces/Ports
StorageTotal Number of USB Ports9
Drive TypeSSDNumber Of Ethernet Ports1
Solid State Drive InterfacePCI Express NVMe 4.0 x4USB Type-C Detail1x USB-C 3.2 Gen 2 (support data transfer and 15W charging)
Solid State Drive Configuration1 x 512GBHDMI (Rear)Yes
Total Solid State Drive Capacity512 GBUSB Type-C (Front)Yes
SSD Form FactorM.2Number of DisplayPort Outputs (Rear)2
DisplayPort (Rear)Yes
Number of USB 3.2 Gen 1 Ports6
Number of USB 3.2 Gen 2 Ports2
Optional PortsDetails regarding optional ports aggregated from the information available for this product's family/series. | Optional Rear Ports

1x USB-C 3.2 Gen 1 with DisplayPort function and 5V@3A charging (Flex IO)
1x HDMI 2.1 TMDS (Flex IO)
1x DP 1.2 (Flex IO)
1x VGA (Flex IO)
1x USB-C 3.2 Gen 2x2 (support data transfer, via USB-C expansion card, PCIe x4)
2x USB-C 3.2 Gen 2 (support data transfer, via 2-port USB-C expansion card, PCIe x4)
2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1)
2x USB 2.0 (via 2-port adapter)
1x parallel
1x serial
1x 2nd serial

Optional Front Ports

1x card reader
Processor
Processor Speed2.50 GHz
Processor TypeCore i5
L2 Cache11.50 MB
Processor Modeli5-13500
Processor CoreTetradeca-core (14 Core)
Processor ManufacturerIntel
vPro TechnologyYes
Maximum Turbo Speed4.80 GHz
Processor Generation13th Gen
Processor Threads20
