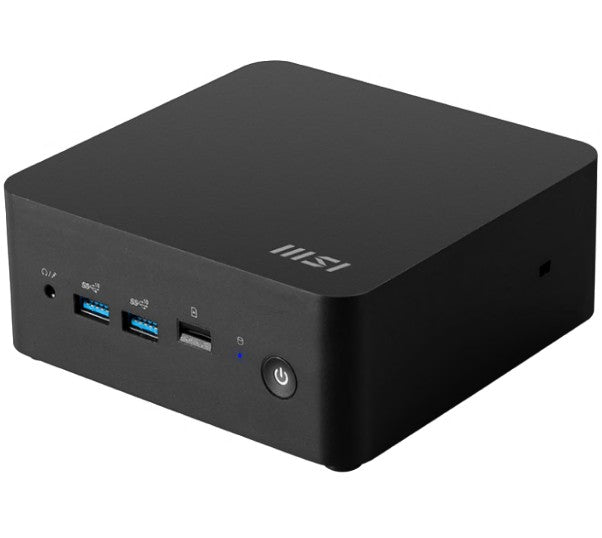

MSI Cubi NUC 1M-016BAU miniPC barebone, Black Intel Core 5-120U DDR5 2*M.2 2*HDMI *TBT 2 LAN/Wifi6E Card Reader Switch Cabl 3Y Cubi NUC 1M-016BAU-B5120UXX

MSI Cubi NUC 1M-016BAU miniPC barebone, Black, Core 5-120U/Up to DDR5//max64GB/2*M.2/2*HDMI/2*TBT/2*LAN/Wifi6E/Card Reader/Switch Cable/3Y

SPECIFICATION

Chipset Soc

Memory
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB

Processor
CPU Number Intel Core 5 Processor 120U
CPU Clock 1.4GHz
CPU Cores 10
TDP 15W
Max Turbo Frequency up to 5.00 GHz
Cache 12 MB Intel Smart Cache
Threads 12

Audio
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio

Storage
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5' Drive Bays(Total) 1
2.5' Drive Bays (Free) 1

Communications
WLAN Version Wi-Fi 6E+BT
BT Version 5.3


I/O Ports (Side)
USB 3.2 Gen 2 Type A (R) 2
RJ45 2
HDMI out 2x (v2.0)

Warranty 36months

Dimension & Weight
Weight (Net kg) 0.625
Weight (Gross kg) 1.45
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10

Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.38
Gross Weight (lbs) 3.2

VESA
VESA size 100 x 100 mm

Regulatory Compliance
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
