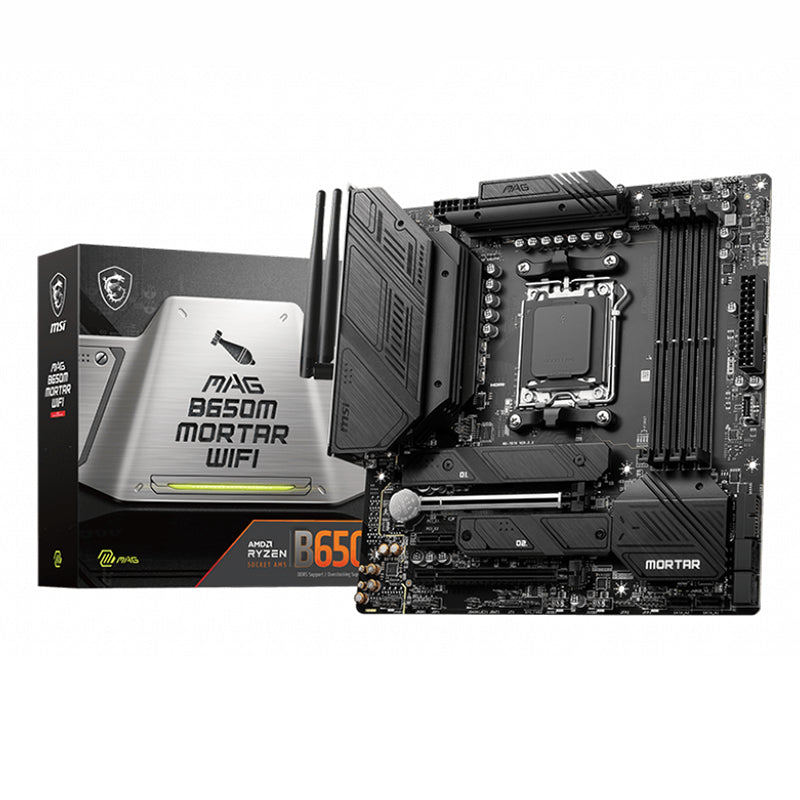

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 6x SATA, 8x USB 3.2, 1x USB Type C MAG B650M MORTAR WIFI

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 6x SATA, 8x USB 3.2, 1x USB Type C MAG B650M MORTAR WIFI

L-MBM-B650MMORTARWIFI

$392.00
$392.00
Sale Sold out
GST included. Shipping calculated at checkout.
  • 99% of orders are dispatched same or next business day
  • Australian Stock and Warranty
  • Perth pickup may be available (2-4 days)
MSI MAG B650M MORTAR WIFI AMD AM5 mATX Motherboard, 4x DDR5 128GB, 1x PCI-E x16, 2x M.2, 6x SATA, 8x USB 3.2, 1x USB Type C

CHIPSETAMD B650

CPU SUPPORTSupports AMD Ryzen 7000 Series Desktop Processors
Socket AM5

MEMORY4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

ONBOARD GRAPHICS1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT2x PCI-E x16 slot
Support x16/ x4

1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

USB4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

PCB DIMENSIONmATX
243.84mmx243.84mm
