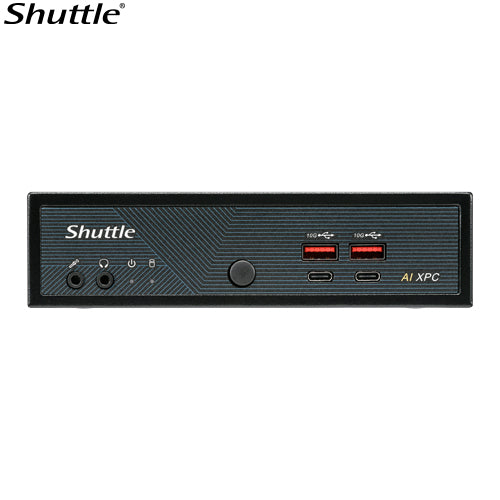

Shuttle AI XPC, Intel Meteor Lake Core Ultra 7 155H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230 DN11H7

Shuttle AI XPC, Intel Meteor Lake Core Ultra 7 155H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

FORM FACTOR1.3L chassis
PROCESSOR
Intel Core Ultra 7 155H 28W CPU
MEMORY2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUTHDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIORealtek ALC 888S High Definition Audio
ETHERNET(4)Intel 2.5GbE LAN
Support wake ON LAN (WOL) feature
STORAGE INTERFACESATA 6.0Gb/s interface
NVMe interface
ONBOARD CONNECTORS(1) 4pin fan connector
(1) Auto power on header
FRONT PANEL(2) USB 3.2 Gen2x2 TypeC ports
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL(4) RJ45 LAN port w/LED
(2) HDMI port TMDS Compatiible
(2) Display port
(4) USB 3.2 Gen2 ports
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DIMENSIONS190(L) x 165(W) x 43(H) mm
POWER120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIESXPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
120W adapter
EXPANSION SLOT(2) M.2 2280 M key socket for NVMe/SATA SSD
(1) M.2 2280 M key socket for NVMe SSD/WWN04
(1) M.2 2230 Type E key socket for WIFI
OS SUPPORTWindows 11 64 bit O.S
Linux
OPERATING TEMPERATURE050
