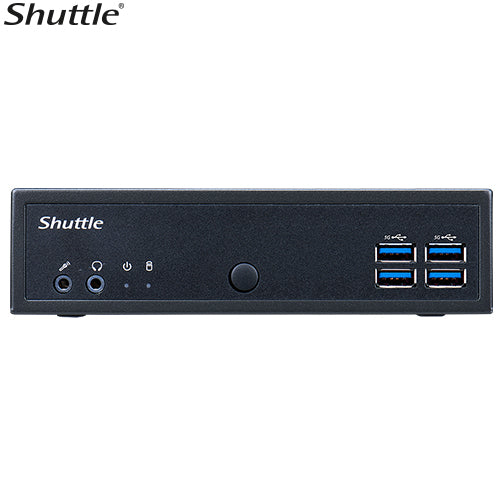

Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter DL30N N100
Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter DL30N N100
SKU:L-SYS-DL30N
Regular price
$539.00
Regular price
Sale price
$539.00
Unit price
per
- 99% of orders are dispatched same or next business day
- Australian Stock and Warranty
- Perth pickup may be available (2-4 days)
Shuttle DL30N Slim Mini PC 1L Barebone - Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter
Form Factor
1.3L slim form factor
Processor
Intel Alder lake-N up to 7W CPU
Intel Processor N100 (DL30N)
Intel Processor N200 (DL30N2)
Intel Core i3-N300 (DL30N3)
Memory
Support DDR5 4800Mhz SODIMM memory Max. 16GB
Video Output
HDMI 2.0b + DisplayPort + VGA video output | Support triple independent display | Intel generation HD Graphic engine
Audio
2 channels High-Definition Audio
Ethernet
Intel I226-LM Dual LAN controller | Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation | Support wake ON LAN (WOL) feature
Storage Interface
SATA for HDD/SSD
Front Panel
Power button | Power Led | HDD Led | USB 3.2 Gen1 ports | MIC-IN | Audio out
Back Panel
Intel 2.5GbE LAN w/LED | Display port | HDMI port | USB 3.2 Gen1 ports | DC in | RS232/RS422/RS485
Expansion Slot
M.2 Type M (2280) | M.2 Type E (2230)
OS Support
Windows 11 64 bit O.S
Ubuntu
Linux O.S
