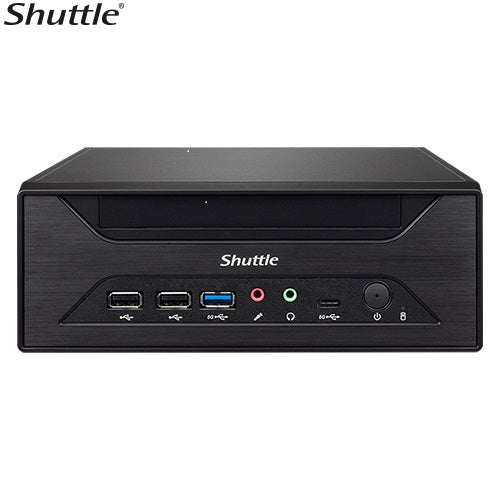

Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot XH610G2
Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot XH610G2
SKU:L-SYS-XH610G2
Regular price
$822.00
Regular price
Sale price
$822.00
Unit price
per
GST included.
Shipping calculated on cart page
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280, (VGA & RS232 both optional), 180W
The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel H610 chipset, it supports Intel 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.
In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50C environments.
Form Factor
Mini-ITX MB
3.5 L chassis
Chipset
Intel H610 Express chipset
Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz
Video Output
HDMI + Display + D-Sub (VGA) port triple display
Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface
SATA 6.0Gb/s interface
View full details
The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel H610 chipset, it supports Intel 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.
In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50C environments.
Form Factor
Mini-ITX MB
3.5 L chassis
Chipset
Intel H610 Express chipset
Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz
Video Output
HDMI + Display + D-Sub (VGA) port triple display
Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface
SATA 6.0Gb/s interface
Description
Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280, (VGA & RS232 both optional), 180W
The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel H610 chipset, it supports Intel 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.
In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50C environments.
Form Factor
Mini-ITX MB
3.5 L chassis
Chipset
Intel H610 Express chipset
Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz
Video Output
HDMI + Display + D-Sub (VGA) port triple display
Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface
SATA 6.0Gb/s interface
The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel H610 chipset, it supports Intel 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.
In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50C environments.
Form Factor
Mini-ITX MB
3.5 L chassis
Chipset
Intel H610 Express chipset
Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz
Video Output
HDMI + Display + D-Sub (VGA) port triple display
Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio
Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Storage Interface
SATA 6.0Gb/s interface
