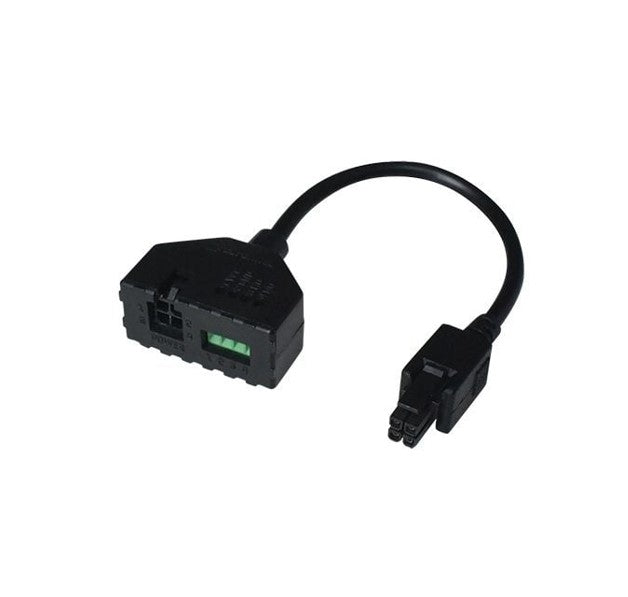

Teltonika 4-PIN POWER ADAPTER WITH I/O ACCESS PR5MEC21
Teltonika 4-PIN POWER ADAPTER WITH I/O ACCESS PR5MEC21
SKU:L-NHT-PR5MEC21
Regular price
$22.00
Regular price
Sale price
$22.00
Unit price
per
GST included.
Shipping calculated on cart page
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
TECHNICAL DATA
GENERAL
Input connector4-pin, 3 mm pitch and 4-way screw terminal block
Output connector4-pin, 3 mm pitch
Cable4 x 0.20 mm (24 AWG), 100 mm
Screwdriver typeMicro slotted
Weight15 g.
*CONNECTION DATA
Conductor cross section solid / flexible0.14 - 0.50 mm (26 - 20 AWG)
Conductor cross section flexible, with ferrule, with plastic sleeve0.25 - 0.30 mm (23 - 22 AWG)
Pinout1 Pin: Power +
2 Pin: Ground -
3 Pin: Input/Output
4 Pin: Input/Output
