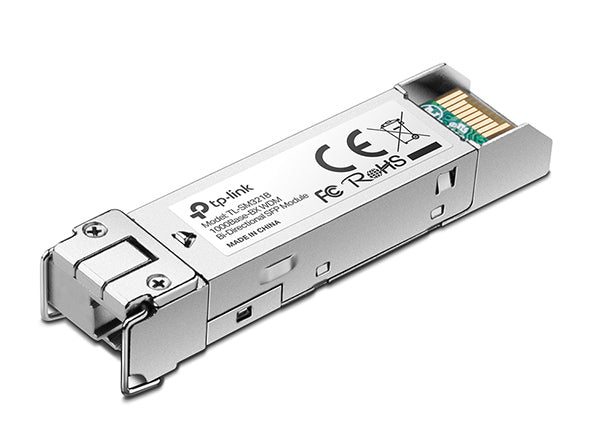

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2) TX: 1310nm, RX: 1550nm, Up To 2KM Transmission Distance, LC Simplex SM321B-2

Name: TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2) TX: 1310nm, RX: 1550nm, Up To 2KM Transmission Distance, LC Simplex SM321B-2
Brand: TP-LINK
SKU: L-NWTL-SM321B-2
Price: 23.0 AUD
Availability: InStock

SKU:L-NWTL-SM321B-2

$23.00

Sale Sold out

GST included. Shipping calculated on cart page

Dispatched same/next business day
Australian stock and warranty
Perth pickup may be available (2-4 days)

Quantity

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2)
Adopts the latest standard 1000Base-BX
Up to 2 km transmission distance in 9/125 m SMF (Single-Mode Fiber)
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Supports Digital Diagnostic Monitoring (DDM)
Supports Hot Swappable

HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
MEDIA CONVERTER & MODULE
Standards and ProtocolsIEEE 802.3z, TCP/IP
Wave LengthTx: 1310 nm
Rx: 1550 nm
Power Supply3.3V
Safety & EmissionFCC, CE
CabelSingle-Mode Fiber
Fiber Type9/125 m Single-Mode
Max. Cable Length10 KM
Data Rate1.25 Gbps
Port TypeLC Simplex
EnvironmentOperating Temperature: 070 C (32158 F)
Storage Temperature: -4085 C ( -40185 F)
Operating Humidity: 1090% RH, Non-Condensing
Storage Humidity: 590% RH, Non-Condensing

View full details
