TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 867Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes Archer C54

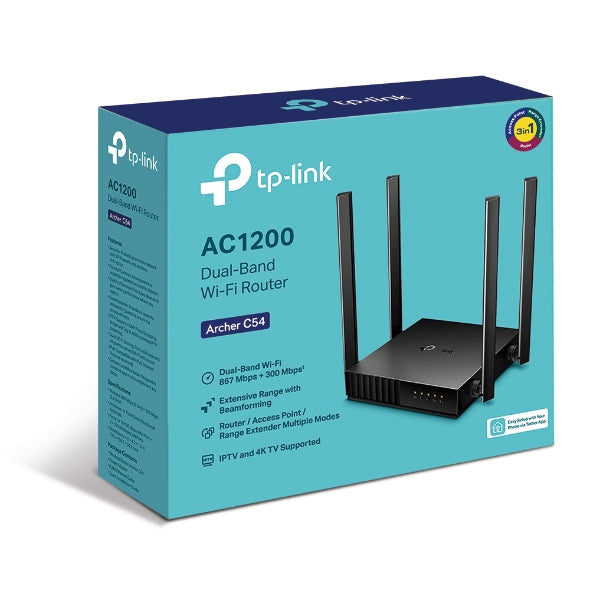

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router

Faster AC Wi-FiAC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
Far-Reaching Coverage4 antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
Multi-Mode 3-in-1Supports Router, Access Point, and Range Extender modes for added flexibility.
Parental ControlsManages when and how connected devices can access the internet.
Guest NetworkProvides separate access for guests in order to secure the host network.
Smooth HD StreamingSupports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
IPv6 SupportedCompatible with the IPv6 (the latest Internet Protocol version 6).
Compact and MountableDesigned to conserve space and complement any dcor.

WIRELESS
StandardsWi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range3 Bedroom Houses
4 Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi CapacityMedium
Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working ModesRouter Mode
Access Point Mode
Range Extender Mode

HARDWARE
ProcessorSingle-Core CPU
Ethernet Ports1 10/100 Mbps WAN Port
4 10/100 Mbps LAN Ports
ButtonsWPS Button
Reset Button
Power5 V 0.6 A

PHYSICAL
Dimensions (WDH) (115 x 106.7 x 24.3 mm)

WiFi Reception Sensitivity5GHz:
11a 6Mbps:-93dBm11a 54Mbps:-78dBm
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm
