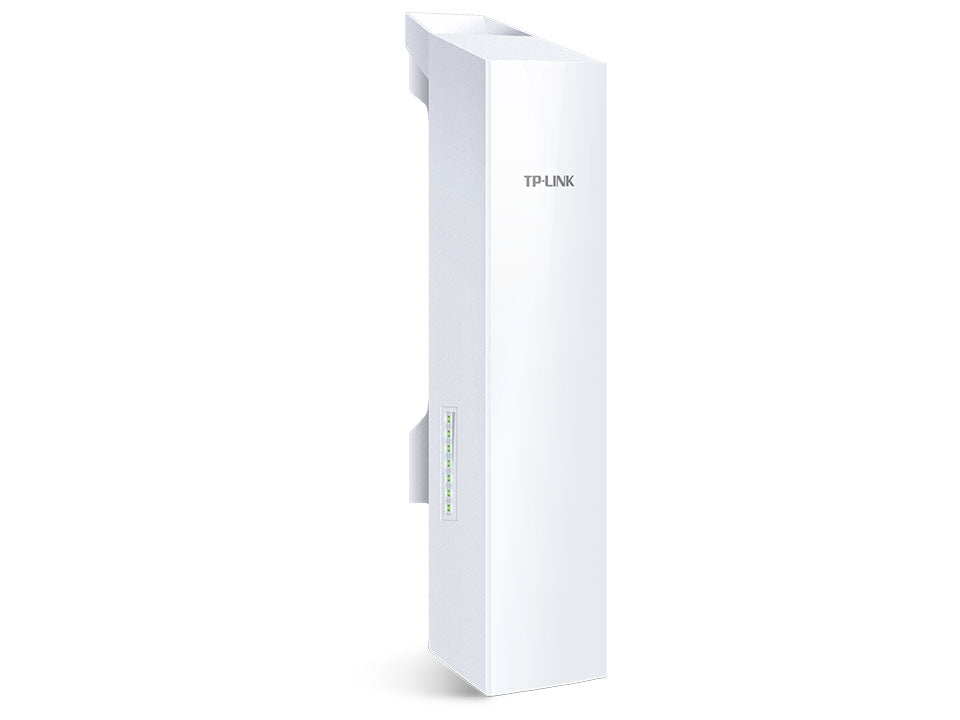

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE AP., Client, AP Router, AP Client Router 13km+ Wireless Data Transmission CPE220

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE AP., Client, AP Router, AP Client Router 13km+ Wireless Data Transmission CPE220

SKU:L-NWTL-CPE220

Regular price $84.00
Regular price Sale price $84.00
Sale Sold out
GST included. Shipping calculated on cart page
  • Dispatched same/next business day
  • Australian stock and warranty
  • Perth pickup may be available (2-4 days)
TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point 802.11b/g/n 2x2 dual-polarized directional MIMO antenna Passive PoE up to13km

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 30dBm/1000mw
System-level optimizations for more than 13km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES
ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )113.12.1 inch (2767960 mm)
Antenna TypeBuilt-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to datasheet
Protection15KV ESD Protection
6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps
