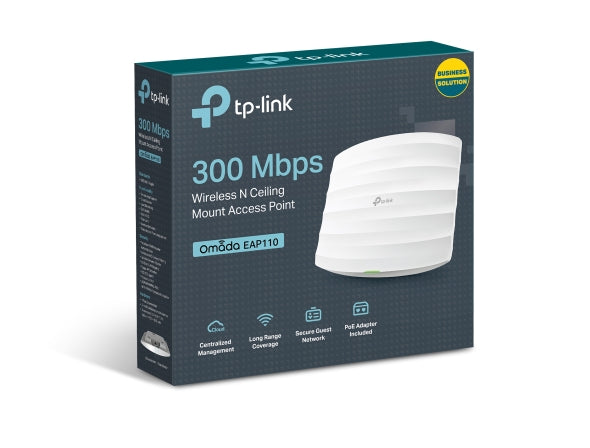

TP-Link EAP110 Omada 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna, Omada EAP110
TP-Link EAP110 Omada 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna, Omada EAP110
SKU:L-NWTL-EAP110
Regular price
$63.00
Regular price
Sale price
$63.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 13 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 13 units available
Sydney, New South Wales 2000
Melbourne - 13 units available
Melbourne, Victoria 3000
Brisbane - 11 units available
Brisbane City, Queensland 4000
Adelaide - 20 units available
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
TP-Link EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna
EAP Controller Software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats
HARDWARE FEATURES
InterfaceFast Ethernet (RJ-45) Port *1Support Passive PoE
ButtonReset
Power Supply24VDC / 1A Passive PoE Supply
Power Consumption7.7W
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna TypeInternal 2* 3dBi Omni
MountingCeiling /Wall Mounting (Kits included)
Physical Security LockKensington Lock Slot
Watch DogYes
WIRELESS FEATURES
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4-2.4835GHz
Signal Rate11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless FunctionsMultiple SSIDs Up to 8 SSIDs
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control Adjust Transmit Power on dBm
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission PowerCE:
<20dBm
FCC:
<26dBm
MANAGEMENT
EAP Controller SoftwareYes
Email AlertsYes
View full details
