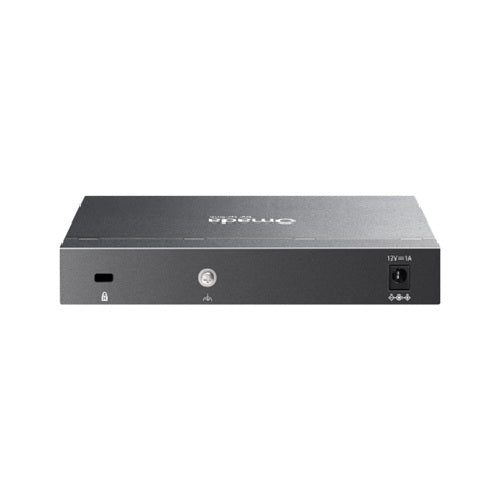

TP-Link Omada ES206X-M2 2.5G Easy Managed Network Switch, 5x 2.5GbE Ports + 10G SFP+, Fanless Design, VLAN, QoS, IGMP Snooping, 5-Year Warranty ES206X-M2

TP-Link Omada ES206X-M2 2.5G Easy Managed Network Switch, 5 2.5GbE Ports + 10G SFP+, Fanless Design, VLAN, QoS, IGMP Snooping, 5-Year Warranty

SPECIFICATION

HARDWARE FEATURES

Interface
5 2.5 Gbps RJ45 Ports
1 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
Desktop
Wall Mount
Physical Security Lock

Power Supply
DC Power Adapter
(Output: 12 VDC / 1 A)
Dimensions ( W x D x H )
6.2 4.0 1.0 in (158 100.7 25.4 mm)
Surge Protection
6kV for Ethernet Ports

SOFTWARE FEATURES

Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control

L2 Features
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP

L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward

Warranty Period: 5-Year
