TP-Link TL-FC311A-20 Gigabit WDM Media Converter - IEEE 802.3u 1550nm 20KM 9/125 µm Single-Mode Fiber (Compatible with TL-FC311B-20) FC311A-20
TP-Link TL-FC311A-20 Gigabit WDM Media Converter - IEEE 802.3u 1550nm 20KM 9/125 µm Single-Mode Fiber (Compatible with TL-FC311B-20) FC311A-20
SKU:L-NWTL-FC311A-20
Regular price
$58.00
Regular price
Sale price
$58.00
Unit price
per
GST included.
Shipping calculated at checkout.
- 99% of orders are dispatched same or next business day
- Australian Stock and Warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability

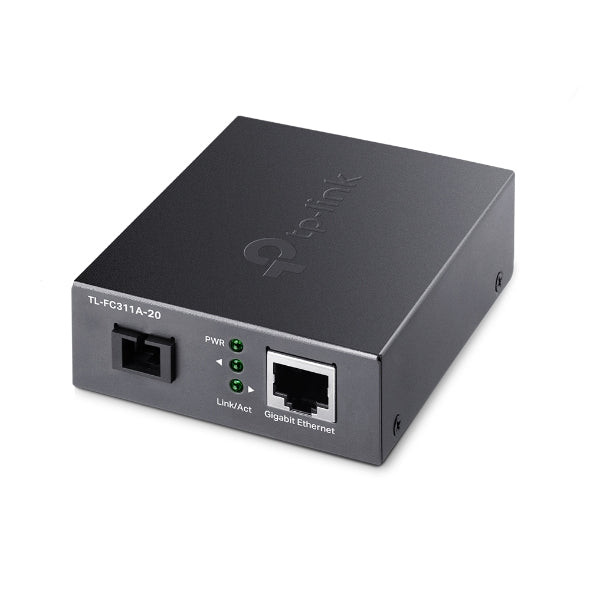

TP-Link TL-FC311A-20 Gigabit WDM Media Converter
1 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fibre
Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20)
NETWORK
Standards and ProtocolsIEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
ENVIRONMENT
Operating Temperature0C to 50C (32F to 122F)
Storage Temperature-40C to 70C (-40F to 158F)
Operating Humidity10% to 90% RH non-condensing
Storage Humidity5% to 90% RH non-condensing
HARDWARE FEATURES
Interface 1 Gigabit SC Fiber Port
1 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media Single-mode Fiber
UTP category 5, 5e cable (maximum 100m)
Power SupplyExternal Power Adapter: 5 V/0.6 A
LEDPWR, Link/Act
Dimensions ( W x D x H )3.72.91.1 in (94.573.027.0 mm)
Wave Length1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Fiber Type9/125 m single-mode fiber
