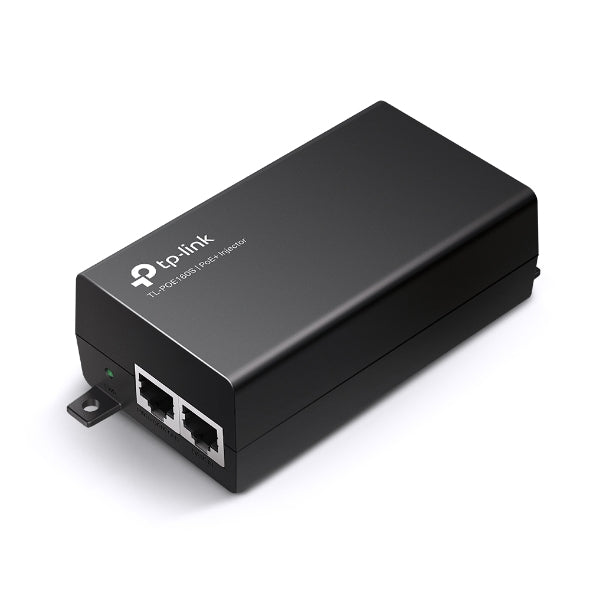

TP-Link TL-POE160S Omada PoE+ Injector, 2 Gigabit Ports, 802.3af/at, Integrated Power Supply, Wall Mountable, Plug & Play TL-POE160S

TP-Link TL-POE160S PoE+ Injector
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

NETWORK
Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL
CertificationFCC, CE, RoHS
EnvironmentOperating Temperature: 0C to 40C (32F to 104F)
Storage Temperature: -40C to 70C (-40F to 158F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power ConsumptionInput: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic FunctionAuto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED IndicatorON: Supplying power normally
OFF: No power supply

Dimensions ( W x D x H )4.9*2.3*1.4 in (125*59.4*36.8 mm)
