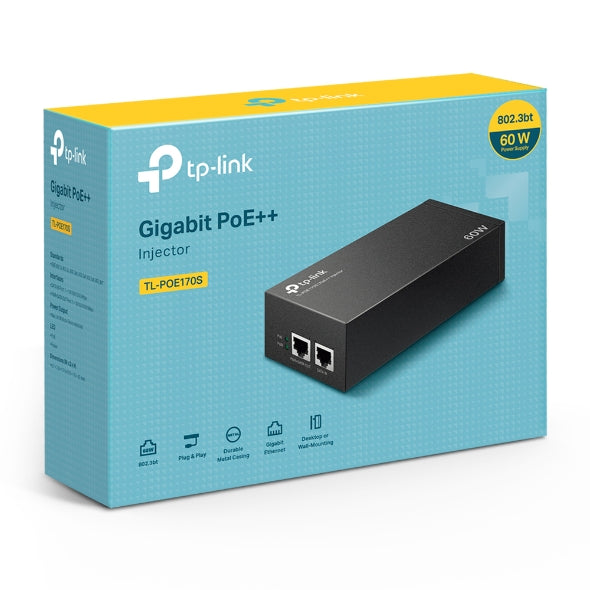

TP-Link TL-POE170S Omada PoE++ Injector, 2 Gigabit Ports, 802.3af/at/bt, Integrated Power Supply, Wall Mountable, Plug & Play POE170S

TP-Link TL-POE170S PoE++ Injector

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation requires no configuration
Integrated power supply
Durable metal casing

NETWORK
Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

HARDWARE FEATURES
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power ConsumptionInput: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic FunctionAuto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

Dimensions ( W x D x H )6.1*2.8*1.7 in (155*70*42 mm)
