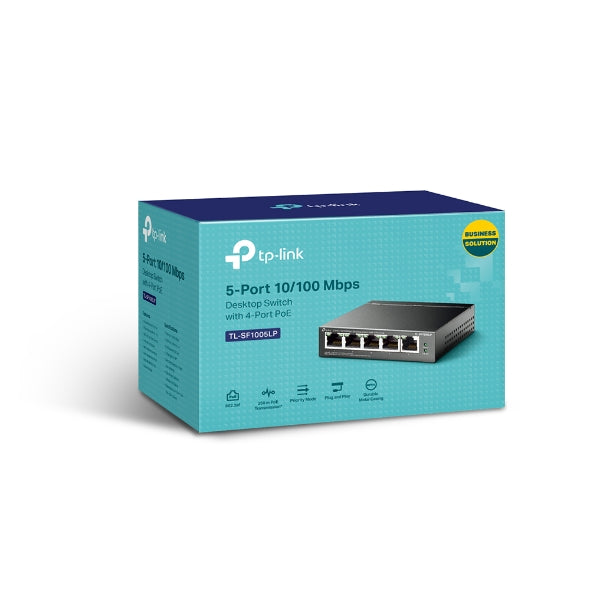

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching TL-SF1005LP

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5 10/100 Mbps RJ45 ports
4 PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required

HARDWARE FEATURES
Interface 5 10/100 Mbps RJ45 Ports (Ports 14 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Ports 14
Power Supply: 41 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1 Gbps
Dimensions ( W x D x H )3.93.91.0 in (1009825 mm)
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation 6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14)
Priority Mode Button (Ports 12)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
CertificationFCC, CE, RoHS
Package Contents TL-SF1005LP
Power Adapter
Installation Guide
Environment Operating Temperature: 040 (32104 )
Storage Temperature: -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH
