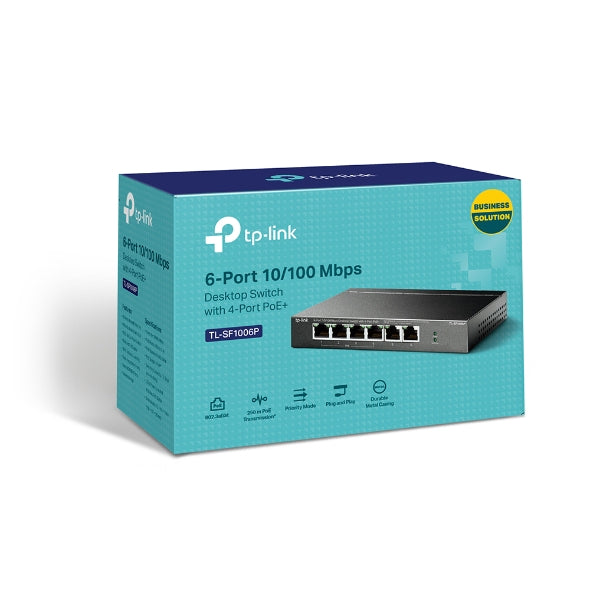

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, Up To 67W For all PoE Ports, Up To 30W Each PoE Port TL-SF1006P

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
6 10/100 Mbps RJ45 ports
4 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Plug and play with no configuration required

HARDWARE FEATURES
Interface 6 10/100 Mbps RJ45 Ports (ports 14 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate0.8928 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 67 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.2 Gbps
Dimensions ( W x D x H )6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation 6.48 BTU/h(no PD connected)
252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14)
Priority Mode Button (Ports 12)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
CertificationFCC, CE, RoHS
Package Contents TL-SF1006P
Power Adapter
Installation Guide
Environment Operating Temperature: 040 (32104 )
Storage Temperature: -4070 (-40158 )
