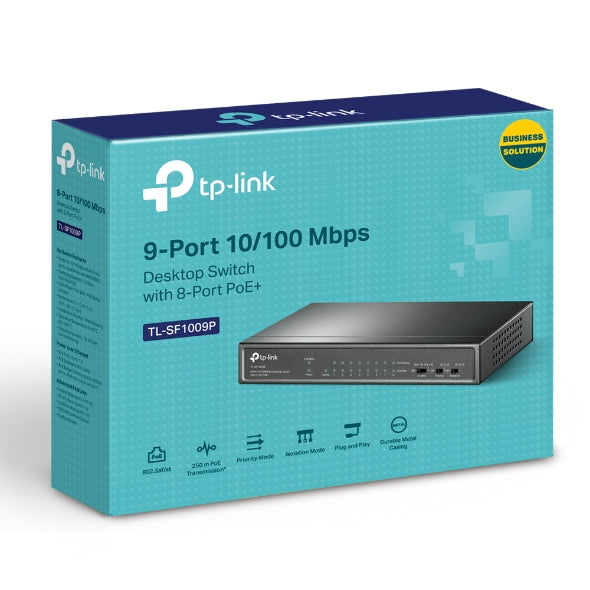

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Up to 65W for 8 PoE ports, Up to 30W for each PoE port TL-SF1009P
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Up to 65W for 8 PoE ports, Up to 30W for each PoE port TL-SF1009P
SKU:L-NWTL-SF1009P
Regular price
$67.00
Regular price
Sale price
$67.00
Unit price
per
GST included.
Shipping calculated on cart page
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
HARDWARE FEATURES
Interface 9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate1.3392 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 18
Power Supply: 65 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.8 Gbps
Dimensions ( W x D x H )6.7 3.9 1.1 in (171 98 27 mm)
Max Power Consumption 3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 12)
Isolation Mode Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
View full details
9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
HARDWARE FEATURES
Interface 9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate1.3392 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 18
Power Supply: 65 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.8 Gbps
Dimensions ( W x D x H )6.7 3.9 1.1 in (171 98 27 mm)
Max Power Consumption 3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 12)
Isolation Mode Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Description
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
HARDWARE FEATURES
Interface 9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate1.3392 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 18
Power Supply: 65 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.8 Gbps
Dimensions ( W x D x H )6.7 3.9 1.1 in (171 98 27 mm)
Max Power Consumption 3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 12)
Isolation Mode Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
HARDWARE FEATURES
Interface 9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate1.3392 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 18
Power Supply: 65 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.8 Gbps
Dimensions ( W x D x H )6.7 3.9 1.1 in (171 98 27 mm)
Max Power Consumption 3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 12)
Isolation Mode Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
