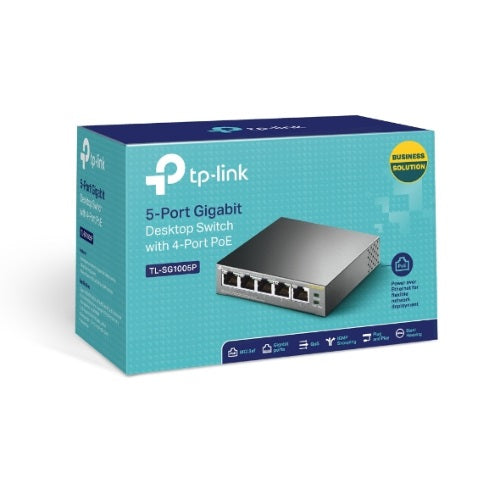

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W TL-SG1005P
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W TL-SG1005P
SKU:L-NWTL-SG1005P
Regular price
$65.00
Regular price
Sale price
$65.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 20 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 20 units available
Sydney, New South Wales 2000
Melbourne - 20 units available
Melbourne, Victoria 3000
Brisbane - 20 units available
Brisbane City, Queensland 4000
Adelaide - 18 units available
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W
5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation
HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 65 W
Mac Address Table2K
Jumbo Frame16 KB
Switching Capacity10 Gbps
Dimensions ( W x D x H )3.93.91.0 in (99.89825 mm)
Max Power Consumption 4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
