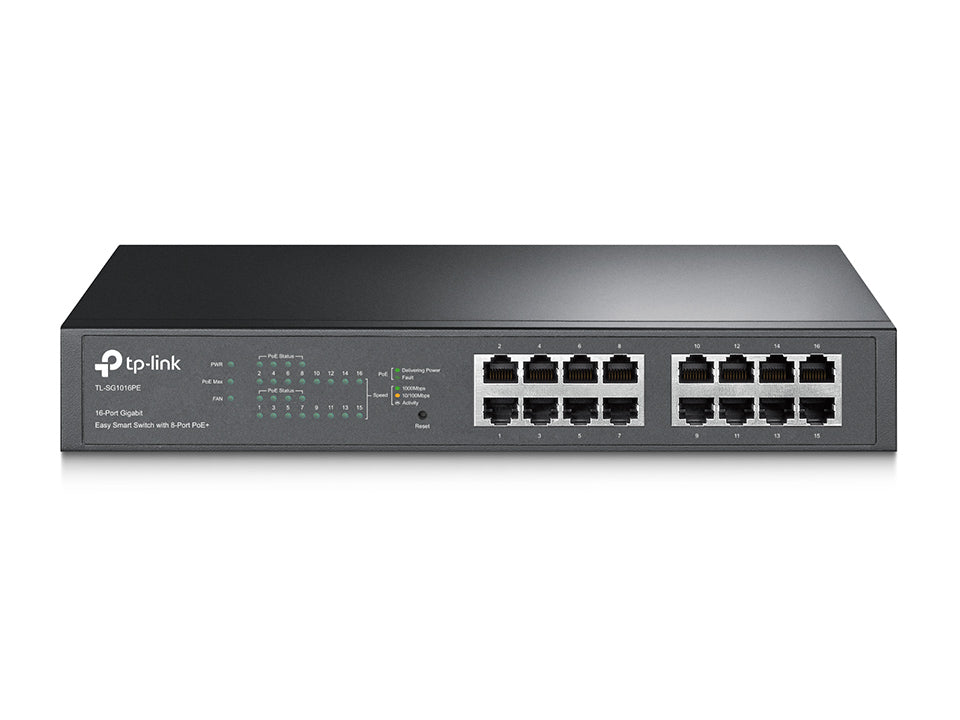

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch 8-Port PoE+ Rack Mountable/Desktop, 32Gbps Switching Capacity, 8K MAC Address Table TL-SG1016PE
TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch 8-Port PoE+ Rack Mountable/Desktop, 32Gbps Switching Capacity, 8K MAC Address Table TL-SG1016PE
SKU:L-NWTL-SG1016PE
Regular price
$204.00
Regular price
Sale price
$204.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 20 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 20 units available
Sydney, New South Wales 2000
Melbourne - 20 units available
Melbourne, Victoria 3000
Brisbane - 20 units available
Brisbane City, Queensland 4000
Adelaide - 12 units available
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
16-Port Gigabit Easy Smart Switch with 8-Port PoE+
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power output by up to 75%*
Plug and play design, no configuration required
*Actual data may vary in different usage environment.
HARDWARE FEATURES
Interface16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity1
Power Supply100-240VAC, 50/60Hz
Power ConsumptionMaximum (PoE on): 124.4W (220V/50Hz)
Maximum (PoE off): 14.4W (220V/50Hz)
PoE+ Ports(RJ45)8 Ports
Backbound Bandwidth32 Gbps
Mac Address Table8K
Buffer Size1.5 Mbits
Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer MethodStore-And-Forward
Advanced FunctionsCompatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
EnvironmentOperating Temperature: 040 (32104)
Storage Temperature: -4070 (-40158)
Operating Humidity: 10%90% non-condensing
Storage Humidity: 5%90% non-condensing
