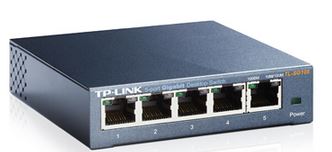

TP-Link TL-SG105 5port Switch Desktop, Gigabit, Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless TL-SG105

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

5-Port 10/100/1000Mbps Desktop Switch
5 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface5 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 5 V DC / 0.6A)
LED IndicatorSystem Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )(100 x 98 x 25 mm)
Max Power Consumption2.3 W (220 V/ 50 Hz)
Max Heat Dissipation7.83 BTU/h

PERFORMANCE
Packet Forwarding Rate7.4 Mpps
MAC Address Table2K
Packet Buffer Memory1 Mb
Jumbo Frame16 KB

SOFTWARE FEATURES
Advanced FeaturesGreen Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer MethodStore and Forward

OTHERS
CertificationCE, FCC, RoHS
Package Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 040 C (32104 F)
Storage Temperature: -4070 C (-40158 F)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
