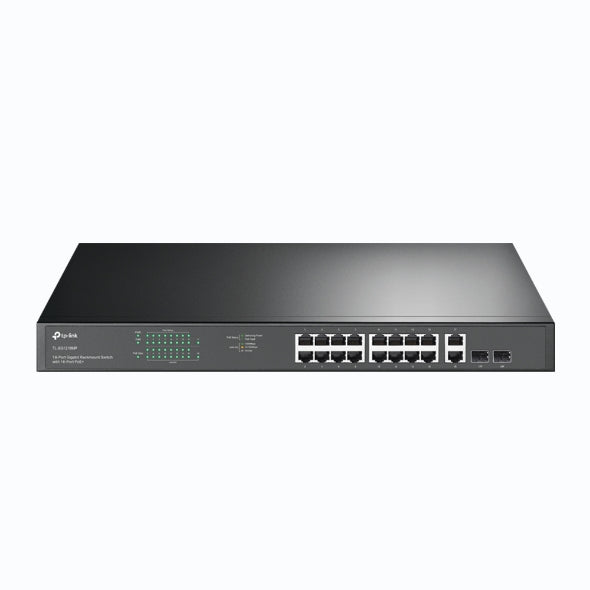

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch With 16 PoE+ & 2 SFP Slots TL-SG1218MP

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

16 gigabit PoE+ RJ45 ports, 2 gigabit non-PoE RJ45 ports, and 2 combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (050 )

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 PoE+ gigabit RJ45 ports
2 gigabit non-PoE RJ45 ports
2 combo gigabit SFP slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity2
Physical Security LockYes
Power Supply100240 VAC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Ports 116
PoE Power Budget: 250 W
Dimensions ( W x D x H )17.3 7.1 1.73 in (440 180 44 mm)
MountingRack Mountable
Max Power Consumption 21.4 W (220/50 Hz. no PD connected)
286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation 72.97 BTU/h (no PD connected)
977.44 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity36 Gbps
Packet Forwarding Rate26.78 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
802.1p/DHCP QoS
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame10 KB
