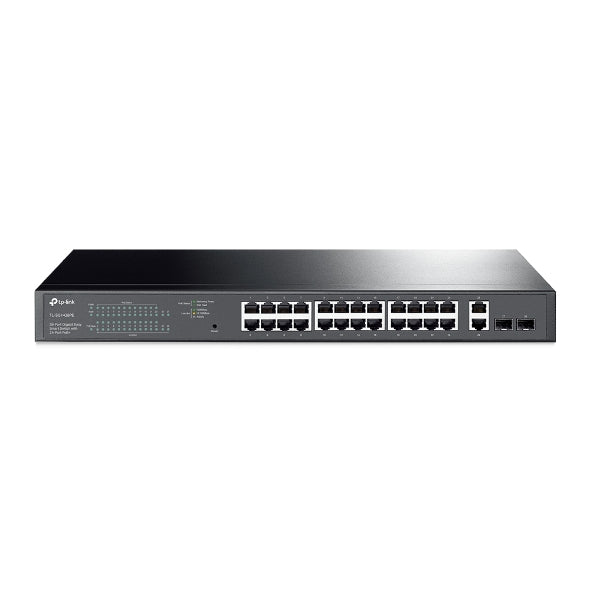

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable TL-SG1428PE
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable TL-SG1428PE
SKU:L-NWTL-SG1428PE
Regular price
$407.00
Regular price
Sale price
$407.00
Unit price
per
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
TP-Link TL-SG1024DE 24-Port Gigabit Desktop/Rackmount Easy Smart Switch energy-efficient L2 Features Supports MAC 128xVLAN 48Gbps Switching Capacity
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity2 Fans
Physical Security LockYes
Power Supply100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H )17.3 8.7 1.73 in (440 220 44 mm)
MountingRack Mountable
Max Power Consumption27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity56 Gbps
Packet Forwarding Rate41.7 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based 802.1p/DSCP priority
View full details
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity2 Fans
Physical Security LockYes
Power Supply100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H )17.3 8.7 1.73 in (440 220 44 mm)
MountingRack Mountable
Max Power Consumption27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity56 Gbps
Packet Forwarding Rate41.7 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based 802.1p/DSCP priority
Description
TP-Link TL-SG1024DE 24-Port Gigabit Desktop/Rackmount Easy Smart Switch energy-efficient L2 Features Supports MAC 128xVLAN 48Gbps Switching Capacity
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity2 Fans
Physical Security LockYes
Power Supply100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H )17.3 8.7 1.73 in (440 220 44 mm)
MountingRack Mountable
Max Power Consumption27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity56 Gbps
Packet Forwarding Rate41.7 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based 802.1p/DSCP priority
