TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots L2/L3/L4 QoS and IGMP Snooping WEB/CLI Managed 53W, Fanless, Omada SDN SG2210P

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots L2/L3/L4 QoS and IGMP Snooping WEB/CLI Managed 53W, Fanless, Omada SDN SG2210P

SKU:L-NWTL-SG2210P

Regular price $189.00
Regular price Sale price $189.00
Sale Sold out
GST included. Shipping calculated on cart page
  • Dispatched same/next business day
  • Australian stock and warranty
  • Perth pickup may be available (2-4 days)

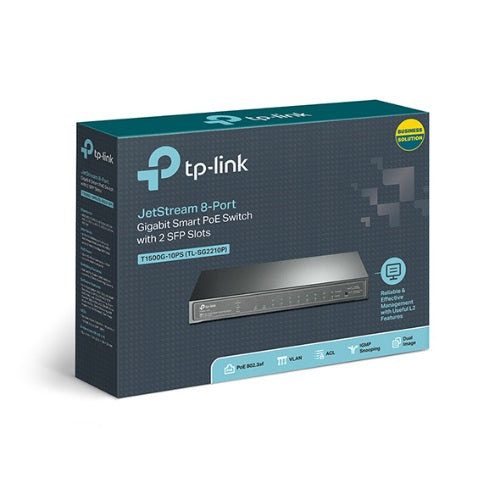

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface8 10/100/1000Mbps RJ45 Ports
Port8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX)
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan QuantityFanless
Physical Security LockNo
Power Supply100240VAC, 50/60Hz
External Power Adapter(Output: 48VDC/1.25A)
Power ConsumptionMaximum (PoE on): 64.9W
Maximum (PoE off): 9.9W
PoE Ports (RJ45)Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W
Dimensions ( W x D x H )209 * 126 * 26mm
Max Power Consumption9.92W (220V/50Hz with no PD connected)
64.89W (110V/60Hz with 53W PD connected)
Max Heat Dissipation33.85 BTU/h (with no PD connected)
221.40 BTU/h (with 53W PD connected)

PERFORMANCE
Bandwidth/Backplane20Gbps
Packet Forwarding Rate14.9Mpps
MAC Address Table8K
Jumbo Frame9KB
