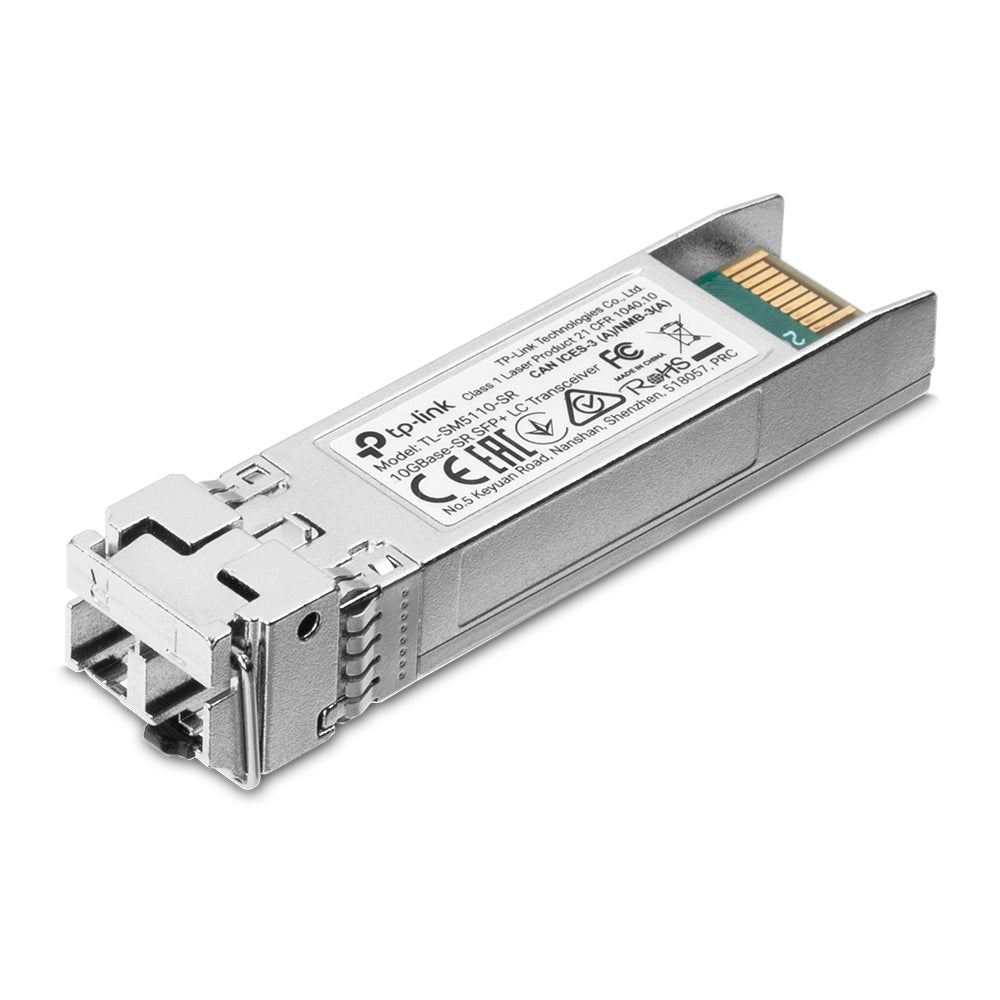

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible SM5110-SR
TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible SM5110-SR
SKU:L-NWTL-SM5110-SR
Regular price
$36.00
Regular price
Sale price
$36.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 10 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 1 unit available (contact us to confirm)
Sydney, New South Wales 2000
Melbourne - 20 units available
Melbourne, Victoria 3000
Brisbane - 10 units available
Brisbane City, Queensland 4000
Adelaide - 1 unit available (contact us to confirm)
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125m or 62.5/125m fiber cables respectively.
HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
TRANSCEIVER
Standards and ProtocolsIEEE 802.3ae, TCP/IP, SFF-8472
Wave Length850nm
Power Supply3.3V
Fiber Type50/125um or 62.5/125um Multi-mode
Max. Cable Length300m (OM3)
Data Rate10Gbps
Port TypeLC/UPC
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 070 (32158 )
Storage Temperature: -4080 (-40176 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
View full details
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125m or 62.5/125m fiber cables respectively.
HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
TRANSCEIVER
Standards and ProtocolsIEEE 802.3ae, TCP/IP, SFF-8472
Wave Length850nm
Power Supply3.3V
Fiber Type50/125um or 62.5/125um Multi-mode
Max. Cable Length300m (OM3)
Data Rate10Gbps
Port TypeLC/UPC
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 070 (32158 )
Storage Temperature: -4080 (-40176 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Description
TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125m or 62.5/125m fiber cables respectively.
HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
TRANSCEIVER
Standards and ProtocolsIEEE 802.3ae, TCP/IP, SFF-8472
Wave Length850nm
Power Supply3.3V
Fiber Type50/125um or 62.5/125um Multi-mode
Max. Cable Length300m (OM3)
Data Rate10Gbps
Port TypeLC/UPC
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 070 (32158 )
Storage Temperature: -4080 (-40176 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125m or 62.5/125m fiber cables respectively.
HARDWARE FEATURES
DDMYes
SFP-MSAYes
Hot SwappableYes
TRANSCEIVER
Standards and ProtocolsIEEE 802.3ae, TCP/IP, SFF-8472
Wave Length850nm
Power Supply3.3V
Fiber Type50/125um or 62.5/125um Multi-mode
Max. Cable Length300m (OM3)
Data Rate10Gbps
Port TypeLC/UPC
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 070 (32158 )
Storage Temperature: -4080 (-40176 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
