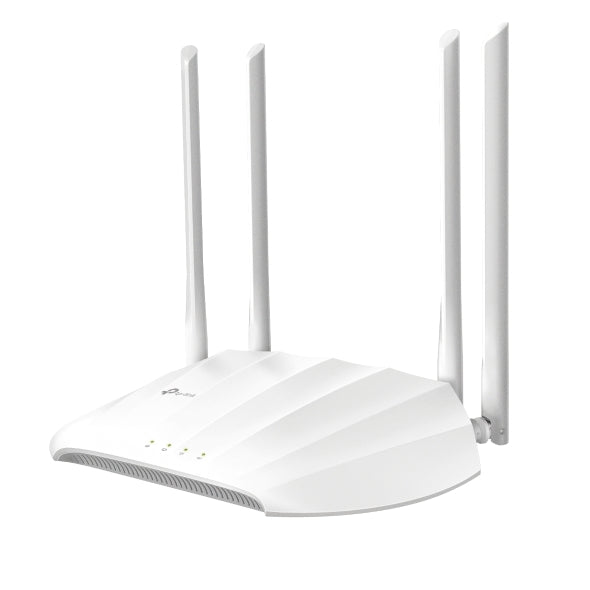

TP-Link TL-WA1201 AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Passive POE, Multiple Modes, MU-MIMO, Boosted Coverage, Captive Portal TL-WA1201
TP-Link TL-WA1201 AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Passive POE, Multiple Modes, MU-MIMO, Boosted Coverage, Captive Portal TL-WA1201
SKU:L-NWTL-WA1201
Regular price
$73.00
Regular price
Sale price
$73.00
Unit price
per
GST included.
Shipping calculated on cart page
Perth - 16 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Sydney - 0 units available
Sydney, New South Wales 2000
Melbourne - 20 units available
Melbourne, Victoria 3000
Brisbane - 0 units available
Brisbane City, Queensland 4000
Adelaide - 4 units available
Adelaide, South Australia 5000
Pickup from Canning Vale, WA - 0 units available
Unit 20 / 24 Baile Road Canning Vale, Western Australia 6155
Perth stock transfer to our Canning Vale warehouse, allow 2-4 days
- Dispatched same/next business day
- Australian stock and warranty
- Perth pickup may be available (2-4 days)
TP-Link TL-WA801N 300Mbps Wireless N Access Point
AC1200 Dual-Band Wi-Fi 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
Flexible Deployment Supports Passive PoE to carry electrical power and data simultaneously.
Multiple Modes Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
MU-MIMO Technology Simultaneously transfers data to multiple devices for 2 faster performance.
Boosted Coverage Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal Offers a designed portal page for heightened security and marketing.
HARDWARE FEATURES
Interface1 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
ButtonPower On/Off Button, WPS Button, Reset Button
External Power Supply12V/1.5A
Wireless StandardsIEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H )225145.537 in (40025572 mm)
Antenna Type4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency2.4 GHz and 5 GHz
Signal Rate867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit PowerCE: <20dBm(2.4GHz), <23dBm(5.15GHz5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)
Wireless ModesAccess Point, Range Extender, Client, Multi-SSID
Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCPServer, DHCP Client List
Quality of ServiceWMM
Advanced FunctionsCaptive Portal
OTHERS
CertificationCE, FCC, RoHS
Package ContentsWireless Access
View full details
AC1200 Dual-Band Wi-Fi 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
Flexible Deployment Supports Passive PoE to carry electrical power and data simultaneously.
Multiple Modes Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
MU-MIMO Technology Simultaneously transfers data to multiple devices for 2 faster performance.
Boosted Coverage Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal Offers a designed portal page for heightened security and marketing.
HARDWARE FEATURES
Interface1 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
ButtonPower On/Off Button, WPS Button, Reset Button
External Power Supply12V/1.5A
Wireless StandardsIEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H )225145.537 in (40025572 mm)
Antenna Type4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency2.4 GHz and 5 GHz
Signal Rate867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit PowerCE: <20dBm(2.4GHz), <23dBm(5.15GHz5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)
Wireless ModesAccess Point, Range Extender, Client, Multi-SSID
Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCPServer, DHCP Client List
Quality of ServiceWMM
Advanced FunctionsCaptive Portal
OTHERS
CertificationCE, FCC, RoHS
Package ContentsWireless Access
