Ubiquiti 5 GHz NanoStation ac Radio -Up to 450+ Mbps Real TCP/IP Throughput, 15+ km Link Range NS-5AC

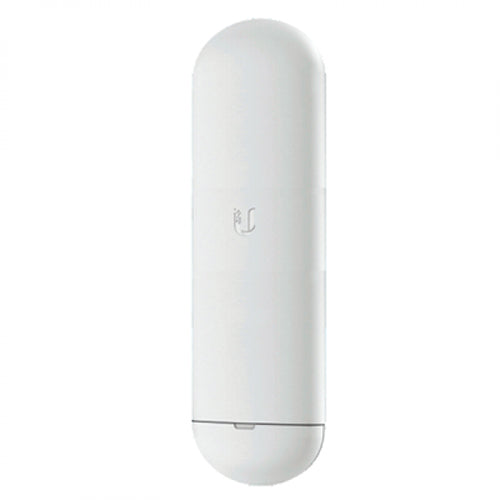

Ubiquiti 5 GHz NanoStation ac Radio

5 GHz airMAX ac Radio
Models: NS-5AC, NS-5ACL
Ubiquiti airMAX ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Dedicated Wi-Fi Radio for Management

Overview
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the
NanoStation M.The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along
with integrated airMAX (MIMO TDMA protocol) technology and dedicatedWi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical todeploy.

Software
airOS 8 is the revolutionary operating
system for Ubiquiti airMAX ac
products.

Powerful Wireless Features:-

Access Point PtMP airMAX Mixed
Mode
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP)
Link Mode
Selectable Channel Width
PtP: 10/20/30/40/50/60/80 MHz
PtMP: 10/20/30/40 MHz
Automatic Channel Selection
Transmit Power Control:
Automatic/Manual
Automatic Distance Selection
(ACK Timing)
Strongest WPA2 Security

Usability Enhancements:-
airMagic Channel Selection Tool
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic
Tools, including RF Diagnostics and
airView Spectrum Analyzer

Specifications:-
Dimensions
With Mount
Without Mount
257 x 84 x 30 mm (10.12 x 3.31 x 1.18')
257 x 84 x 41 mm (10.12 x 3.31 x 1.61')
Weight 233 g (8.22) oz
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption 8.5W
Power Method 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
24V Passive PoE
