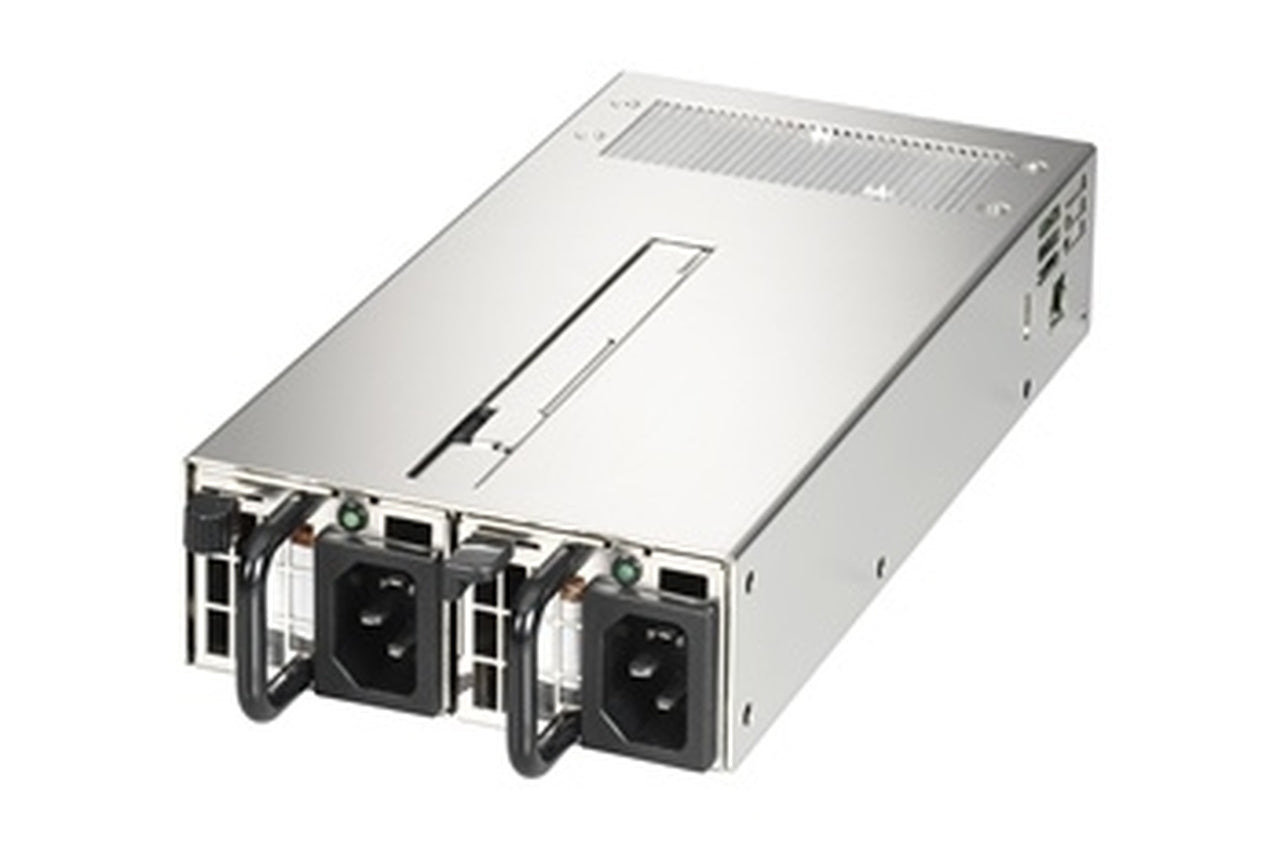

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server R1T2-5120V0H

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

FEATURES
* TEMPERATURE RANGEOPERATING 050, STORAGE -2080
* HOLD UP TIMEWHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%, MEASURED AT NOMINAL INPUT VOLTAGE 230 V AND FULL LOADING(+12V:10A).
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* REMOTE ON/OFF CONTROL
* POWER GOOD SIGNALON DELAY 100mS TO 550mSOFF DELAY 1Ms
* OVER POWER PROTECTION110150% MAX
* OVER VOLTAGE PROTECTION: +5V5.76.5V, +3.3V3.74.1V, +12V12.815V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: MEET UL&CUL, TUV, CCC
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL
* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.

OUTPUT WATTAGE
120W

BEST SOLUTION FOR
Server

DIMENSION
215x106x41.5(mm)

8.46x4.17x1.63(inch)

INPUT SPEC
VOLTAGE 90264VAC FULL RANGE
FREQUENCY 4763HZ
INPUT CURRENT2A (RMS) FOR 115 VAC
1A (RMS) FOR 230 VAC
INRUSH CURRENT35A MAX. FOR 115 VAC PER MODULE
70A MAX. FOR 230 VAC PER MODULE

DC OUTPUT SPEC
Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]
+5V0105%1%50mV
+12V2105%1%120mV
+3.3V010 5%1%50mV
-12V00.310% 1%120mV
+5VSB0.135%1%50mV
